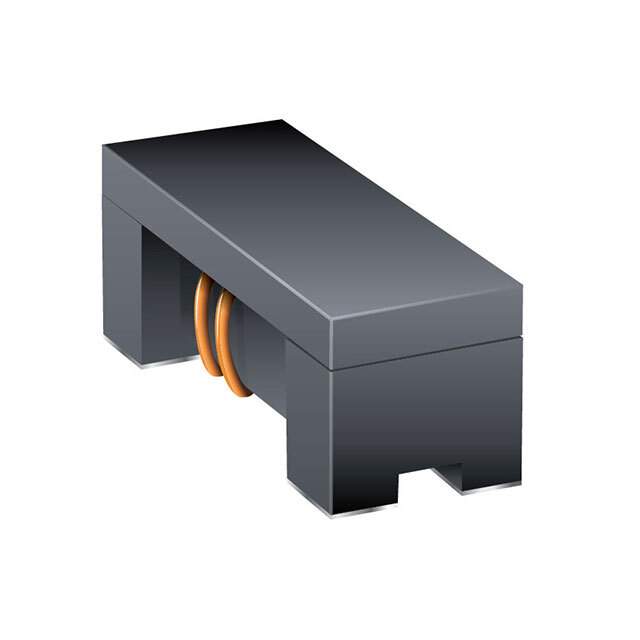

SRF2012-221Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012-221Y

Part No SRF2012-221Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Number of Lines 2
Impedance @ Frequency 220 Ohms @ 100 MHz
Current Rating (Max) 310mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.057" (1.45mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012
Other Names -SRF2012-221YCT,SRF2012221Y,-SRF2012-221YTR,SRF2012-221YTR,-SRF2012-221Y,SRF2012-221Y,SRF2012-221YCT,-SRF2012-221Y
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277149-SRF2012-221Y
Ultra Librarian 3D Model Ultra Librarian SRF2012-221Y CAD Model

Description

The Bourns Inc. SRF2012-221Y is a common mode choke filter with an impedance of 220 Ohms @ 100 MHz.

  • Maximum DC Resistance (DCR): 350mOhm
  • Current Rating (Max): 310mA
  • Package: Tape & reel (TR), cut tape (CT) package
  • Height (Max): 0.057" (1.45mm)
  • Temperature Range: -55°C ~ 125°C
  • Mounting: Suitable for SMD (SMT) mounting
  • Manufacturer: Bourns Inc.
  • Supply and Demand Status: Unlimited
  • REACH Regulations: Unaffected
