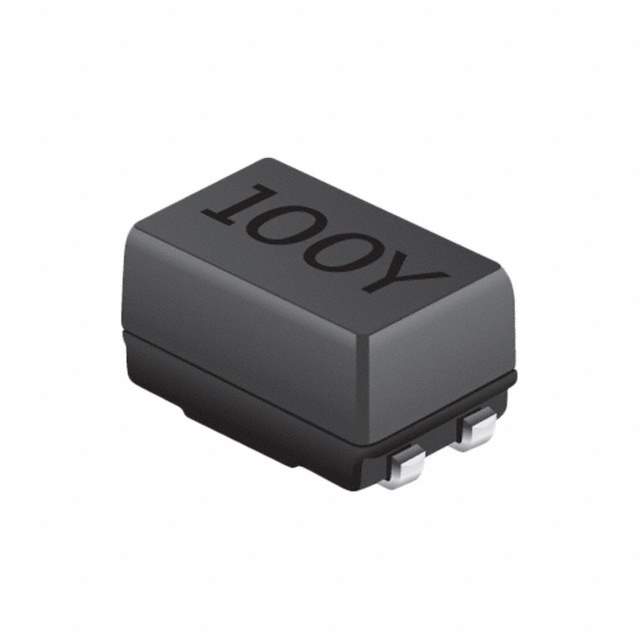

SRF0905A-251Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905A-251Y

Part No SRF0905A-251Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 250UH 1.2A 2LN SMD AEC-Q200 / 250 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 600 Ohms @ 3 MHz 1.2A DCR 130mOhm
Datasheet
SRF0905A-251Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF0905A
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohms @ 3 MHz
Inductance @ Frequency 250 µH @ 100 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 130mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.248" (6.30mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF0905A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRF0905A-251YDKR,SRF0905A-251YCT,SRF0905A-251YTR
Standard Package 1,000
Win Source Part Number 1095923-SRF0905A-251Y
Ultra Librarian 3D Model Ultra Librarian SRF0905A-251Y CAD Model

Description

The SRF0905A-251Y is a common mode choke inductor from the SRF0905A series.

  • Type: Signal line filter
  • Package/Case: Horizontal, 4 PC pad
  • Impedance: 600 Ohms @ 3 MHz
  • Inductance: 250 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 130mOhm
  • Mounting Type: SMD (SMT)
  • Standard Package: 1,000
  • Operating Temperature: -40°C to 105°C
  • Height: 0.248" (6.30mm)
  • Dimension: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • Standard Package: 1,000
