Same model may have multiple batches, images only for reference.

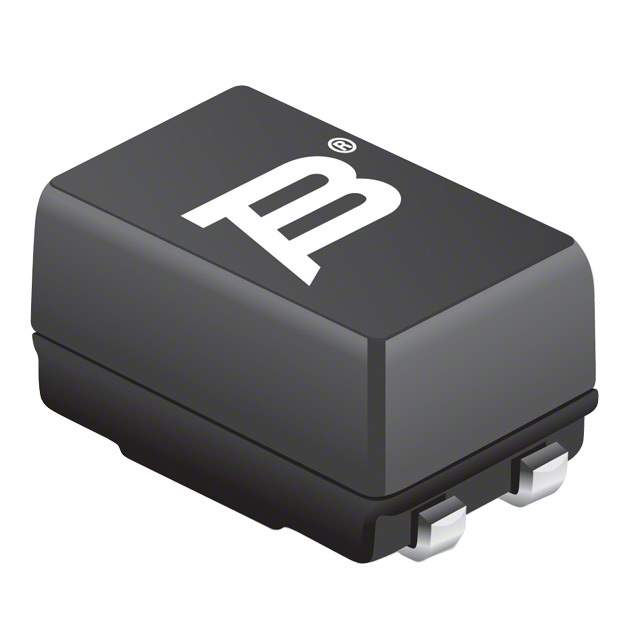

SRF0905-472Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-472Y

Part No SRF0905-472Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 4.7MH 400MA 2LN 4 KOHM SMD / Common Mode Chokes Dual 4700uH 4kOhm 100kHz 0.4A 0.9Ohm DCR SMD T/R
Datasheet
SRF0905-472Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 4 kOhm @ 300kHz
Inductance @ Frequency 4.7mH @ 100kHz
Current Rating (Maximum) 400mA
DC Resistance (DCR) (Maximum) 900 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 795396-SRF0905-472Y
Popularity Medium
Supply and Demand Status Balance
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SRF0905-472Y CAD Model

Description

The Bourns Inc. SRF0905-472Y signal line filter is an electronic component that attenuates high frequency noise in electronic circuits from Bourns Inc.

  • Impedance: 4k ohms @ 300kHz
  • Inductance: 4.7mH @ 100kHz
  • Voltage Rating: 80V
  • Current Rating: 400mA
  • Mounting Type: surface mount device (SMD)
  • Package: horizontal, 4 PC pad
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.362" L x 0.236" W (9.20mm x 6.00mm)
