Same model may have multiple batches, images only for reference.

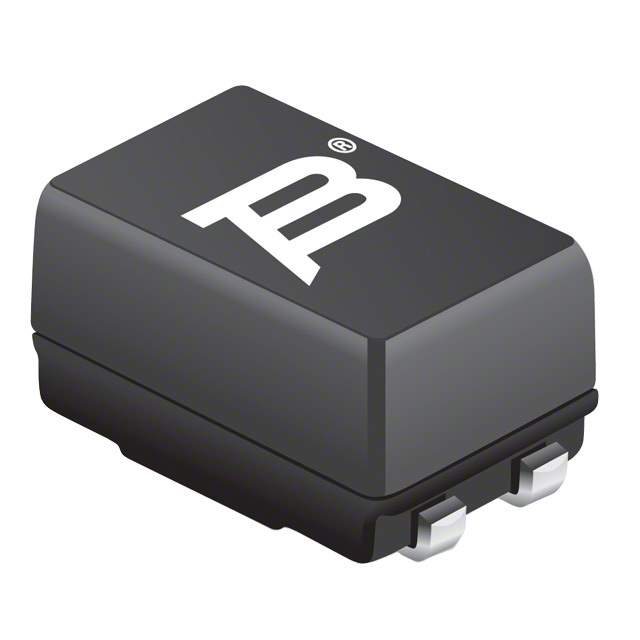

SRF0905-202Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-202Y

Part No SRF0905-202Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Inductance range: 10 to 6500 μH
Datasheet
SRF0905-202Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3 kOhm @ 1MHz
Inductance @ Frequency 2mH @ 100kHz
Current Rating (Maximum) 600mA
DC Resistance (DCR) (Maximum) 420 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Size 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1258742-SRF0905-202Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China ,Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SRF0905-202Y CAD Model

Description

The SRF0905-202Y is a signal line filter from Bourns Inc. that is designed to be used in industrial applications.

  • Package: Horizontal, 4 PC pad
  • Dimensions: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Mounting: SMD
  • Voltage Rating: 80V DC
  • Maximum Current: 600mA
  • Impedance: 3 kOhm @ 1MHz
  • Inductance: 2mH @ 100kHz
  • DCR: 420 mOhm
  • Operating Temperature: -40°C to 105°C
  • Halogen-Free: Yes
  • Popularity: Medium
  • Estimated EOL Date: 2022
