Same model may have multiple batches, images only for reference.

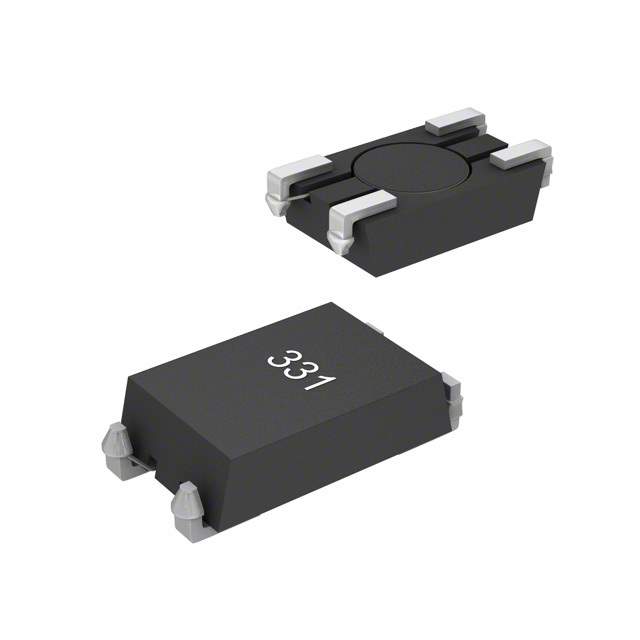

SRF0602-470Y Real Image
Same model may have multiple batches, images only for reference.

SRF0602-470Y

Part No SRF0602-470Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF0602-470Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF0602
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 140 Ohms @ 4 MHz
Inductance @ Frequency 47 µH @ 10 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) 0.071" (1.80mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF0602
Other Names SRF0602-470YDKR,-SRF0602-470YTR,SRF0602470Y,-SRF0602-470Y,SRF0602-470Y,-SRF0602-470Y,SRF0602-470YTR,-SRF0602-470YCT,SRF0602-470YCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277168-SRF0602-470Y
Ultra Librarian 3D Model Ultra Librarian SRF0602-470Y CAD Model

Description

The SRF0602-470Y is a common mode choke from Bourns Inc.

  • Series: SRF0602 series
  • Filter Application: Signal line filters
  • Package: Tape and reel
  • Voltage Rating: 50V DC
  • Current Rating (Max): 300mA
  • Standard Package: 1,000
  • Mounting Type: Surface mount device
  • Package/Case: Horizontal, 4 PC pad
  • Height: 0.071 inches
  • Dimension: 0.256 inches in length and 0.142 inches in width
  • Impedance @ Frequency: 140 Ohms @ 4 MHz
  • Inductance @ Frequency: 47 μH @ 10 kHz
  • DC Resistance (DCR): 160mOhm
  • Temperature Range - Operating: -40°C to 105°C
