Same model may have multiple batches, images only for reference.

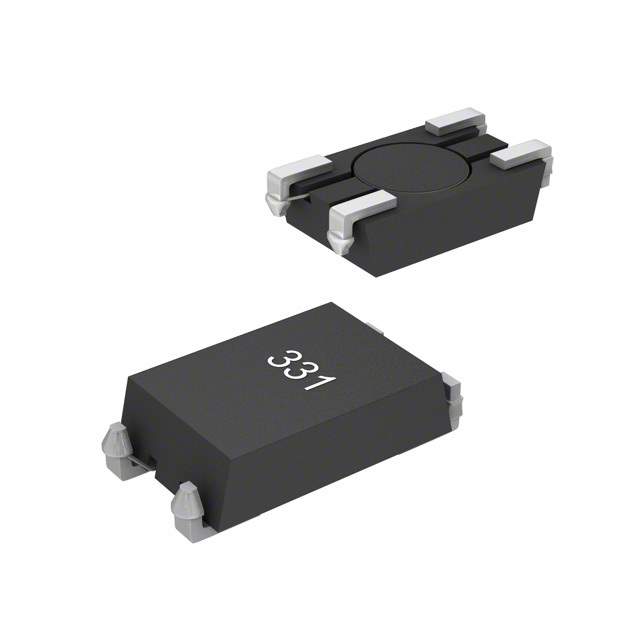

SRF0602-100Y Real Image
Same model may have multiple batches, images only for reference.

SRF0602-100Y

Part No SRF0602-100Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF0602-100Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF0602
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohms @ 35 MHz
Inductance @ Frequency 10 µH @ 10 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) 0.071" (1.80mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF0602
Other Names SRF0602-100Y,SRF0602-100YTR,-SRF0602-100Y,-SRF0602-100YCT,SRF0602-100YCT,-SRF0602-100YTR,-SRF0602-100Y,SRF0602-100YDKR,SRF0602100Y
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277164-SRF0602-100Y
Ultra Librarian 3D Model Ultra Librarian SRF0602-100Y CAD Model

Description

The Bourns Inc. SRF0602-100Y is a signal line filter that belongs to the Common Mode Chokes category.

  • Category: Common Mode Chokes
  • Inductance @ Frequency: 10 microhenry inductance @ 10 kHz frequency
  • Impedance @ Frequency: 600 ohms impedance @ 35 MHz frequency
  • Mounting Type: SMD (SMT) mounted
  • DC Resistance (Max): 240 milliohms
  • Current Rating: 300mA
  • Package/Case: Horizontal, 4 PC pad
  • Temperature Range: -40°C to 105°C
