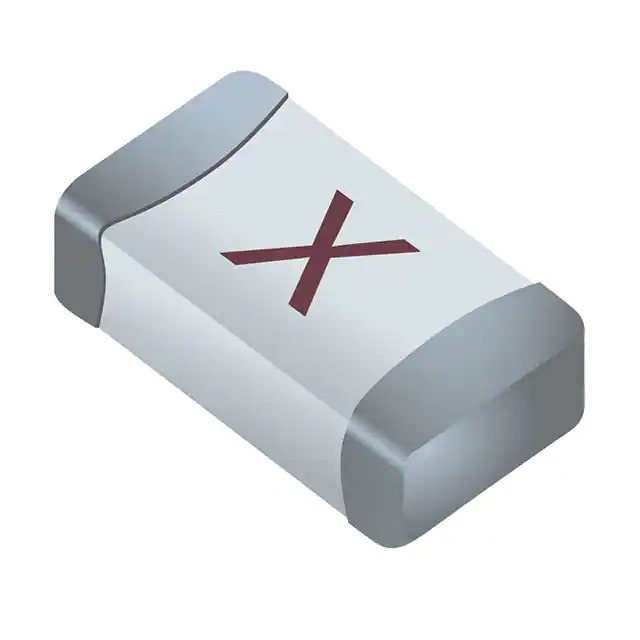

Same model may have multiple batches, images only for reference.

SF-1206HH30M-2

Name: SF-1206HH30M-2
Brand: Bourns Inc.
SKU: 1361298
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SF-1206HH30M-2
Manufacturer	Bourns Inc.
Catalog	Fuses
Description	FUSE BOARD MOUNT 30A 24VDC 1206 / 30 A AC 24 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet	SF-1206HH30M-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Fuses
Mfr	Bourns Inc.
Series	SinglFuse™ SF-1206HHxxM
Package	Tape & Reel
Product Status	Active
Mounting Type	Surface Mount
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	30 A
Voltage Rating - DC	24 V
Response Time	Slow Blow
Package / Case	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage	300A
Melting I²t	270
Approval Agency	UL
Temperature Range - Operating	-55°C ~ 125°C
Color	-
Size / Dimension	0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance	0.0012 Ohms
Base Product Number	SF-1206
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.10.0040
Win Source Part Number	1361298-SF-1206HH30M-2
Ultra Librarian 3D Model	Ultra Librarian SF-1206HH30M-2 CAD Model

Alternative Products

Description

The Bourns Inc. SinglFuse™ SF-1206HHxxM is a surface mount fuse designed for circuit protection in various electronic applications.

Series: SinglFuse™ SF-1206HHxxM
Response Time: Slow Blow
Package / Case: 1206 (3216 Metric)
Mounting Type: Surface Mount
Breaking Capacity @ Rated Voltage: 300A @ 24V DC
Current Rating: 30A
Voltage Rating - AC: 24 V
Voltage Rating - DC: 24 V
Operating Temperature: -55°C ~ 125°C
Size / Dimension: 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
REACH: Unaffected
ECCN: EAR99
