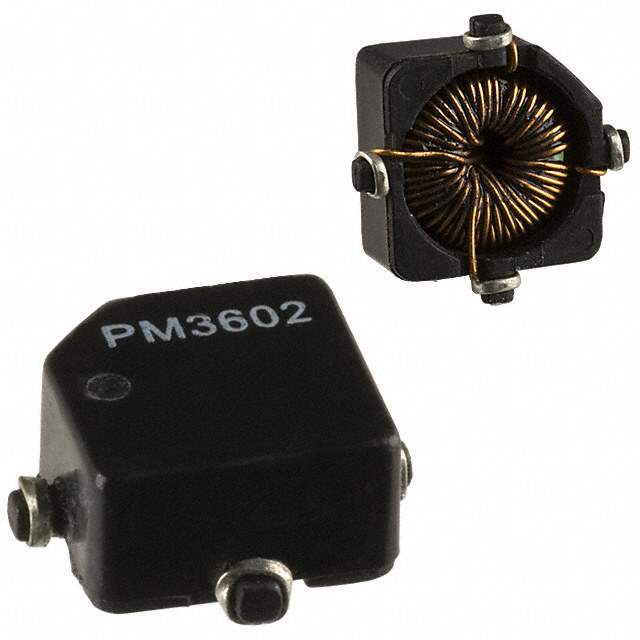

Same model may have multiple batches, images only for reference.

PM3602-300-RC

Name: PM3602-300-RC
Brand: Bourns Inc.
SKU: 656102
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PM3602-300-RC
Manufacturer	Bourns Inc.
Catalog	Arrays, Signal Transformers
Description	SMD Inductor/Transformer
Datasheet	PM3602-300-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	PM3600
Packaging	Reel - TR
Number of Coils	2
Test Inductance - Connected In Series	1.2mH
Inductance - Connected In Parallel	300μH
Tolerance	±20%
Current Rating - Parallel	320mA
Current Rating - Series	160mA
DC Resistance (DCR) - Parallel	1.31 Ohm Max
DC Resistance (DCR) - Series	5.24 Ohm Max
Shielding	Unshielded
Operating Temperature Range	-55°C ~ 125°C
Mounting	SMD
Package	Nonstandard
Size	0.452" L x 0.354" W (11.48mm x 8.99mm)
Height	0.225" (5.72mm)
RoHS State	Request Verification
Win Source Part Number	1238790-PM3602-300-RC
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PM3600
Introduction Date	May 23, 2007
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian PM3602-300-RC CAD Model

Description

The Bourns Inc. 1238790-PM3602-300-RC is a high-quality electronic component with a limited supply and demand status. It is designed to meet the demanding requirements of modern electronic systems, and it is manufactured by Bourns Inc., a trusted and reputable brand in the industry.

This component is an ideal choice for engineers and designers who are looking for a reliable and efficient solution for various electronic applications.
The 1238790-PM3602-300-RC offers advanced features and high-performance specifications, making it a perfect fit for demanding electronic systems.
