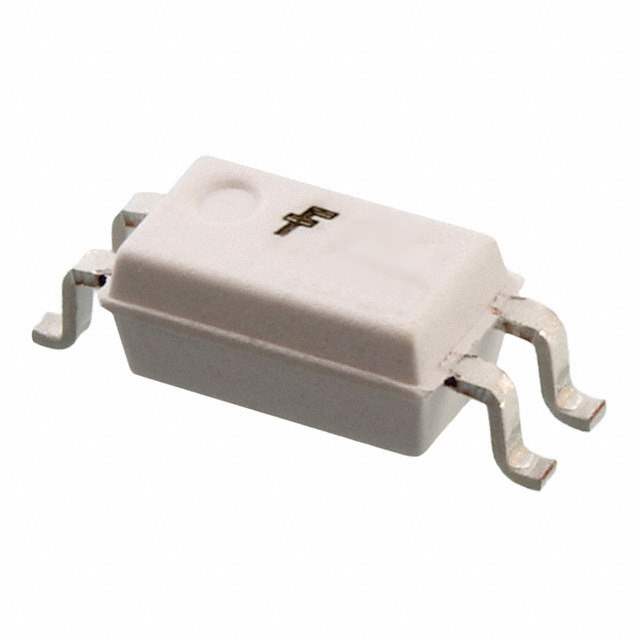

HMHA2801R2 Real Image
Same model may have multiple batches, images only for reference.

HMHA2801R2

Part No HMHA2801R2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANSISTOR 4SMD
Datasheet
HMHA2801R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 068173-HMHA2801R2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2,500
Family Name HMHA2801
Introduction Date March 15, 2002
ECCN EAR99
Country of Origin China, Japan, Singapore, Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian HMHA2801R2 CAD Model

Description

The Fairchild/ON Semiconductor HMHA2801R2 is an isolator with high popularity. The HMHA2801R2 has a minimum DC current transfer ratio of 80% @ 5mA and a maximum DC current transfer ratio of 600% @ 5mA. It has a switching turn-on and turn-off time and a rise and fall time of 3μs, 3μs. This product is suitable for applications that require a high amount of supply and demand.
