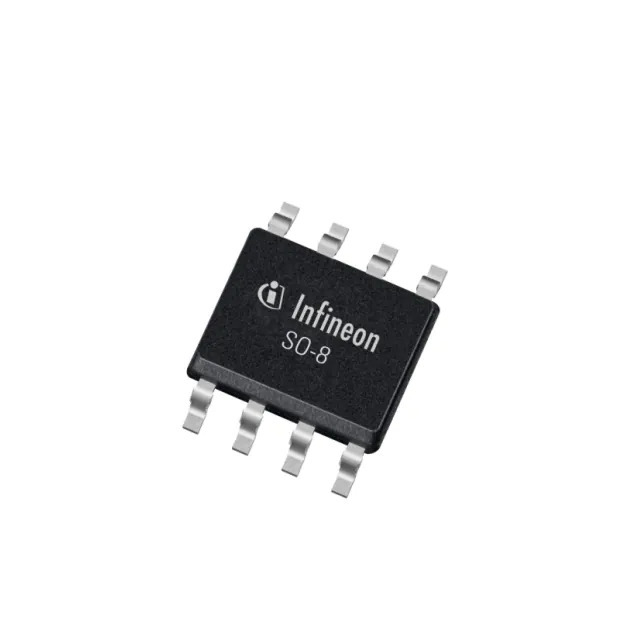

Same model may have multiple batches, images only for reference.

BSO615CGXUMA1

Name: BSO615CGXUMA1
Brand: Infineon Technologies
SKU: 1353632
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSO615CGXUMA1
Manufacturer	Infineon Technologies
Catalog	FETs - Arrays
Description	MOSFET N/P-CH 8-SOIC / Mosfet Array 60V 3.1A (Ta), 2A (Ta) 2W (Ta) Surface Mount PG-DSO-8
Datasheet	BSO615CGXUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Infineon Technologies
Series	SIPMOS®
Package	Tape & Reel
Product Status	Last Time Buy
Technology	MOSFET (Metal Oxide)
Configuration	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta), 2A (Ta)
Rds On (Max) @ Id, Vgs	110mOhm @ 3.1A, 10V, 300mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	2V @ 20µA, 2V @ 450µA
Gate Charge (Qg) (Max) @ Vgs	22.5nC @ 10V, 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	380pF @ 25V, 460pF @ 25V
Power - Max	2W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	PG-DSO-8
Base Product Number	BSO615
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1353632-BSO615CGXUMA1
Ultra Librarian 3D Model	Ultra Librarian BSO615CGXUMA1 CAD Model

Description

The BSO615CGXUMA1 is a MOSFET array from Infineon Technologies.

Series: SIPMOS®
Operating Temperature: -55°C to 150°C
Drain-to-Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 3.1A @ 25°C
On-Resistance (Rds On): 110mOhm @ 3.1A, 300mOhm @ 2A
Gate Type: Logic-Level
Gate Charge (Qg): 22.5nC @ 10V
Package: 8-SOIC
Mounting Type: Surface Mount
