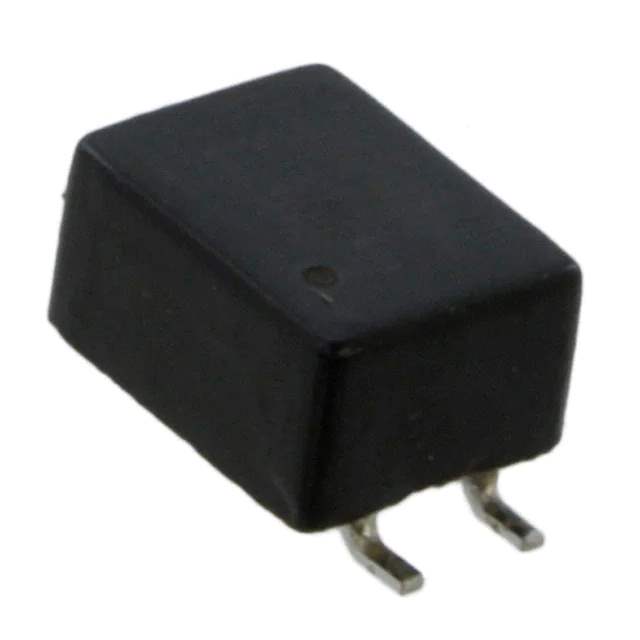

DR331-474BE Real Image
Same model may have multiple batches, images only for reference.

DR331-474BE

Part No DR331-474BE
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 470UH 500MA 2LN SMD / 470 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 280mOhm
Datasheet
DR331-474BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Bourns Inc.
Series DR331
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 470 µH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 280mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C ~ 135°C
Mounting Type Surface Mount
Size / Dimension 0.287" L x 0.213" W (7.30mm x 5.40mm)
Height (Max) 0.197" (5.00mm)
Package / Case Horizontal, 4 Flat Lead
Base Product Number DR331
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
California Prop 65 Warning Information
Win Source Part Number 849683-DR331-474BE
Ultra Librarian 3D Model Ultra Librarian DR331-474BE CAD Model

Description

The 849683-DR331-474BE is a common mode choke filter manufactured by Bourns Inc. It belongs to the DR331 series and is designed for signal line filtering.

  • Package: Tape & Reel
  • Size: 0.287" L x 0.213" W
  • Voltage Rating: 42V (AC) and 80V (DC)
  • Maximum Current Rating: 500mA
  • Inductance: 470 µH @ 100 kHz
  • DC Resistance (DCR): 280mOhm (max)
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 Flat Lead
  • Operating Temperature Range: -40°C to 135°C
  • REACH: Unaffected
  • Product Status: Active
  • California Prop 65 Compliant: Yes
  • ECCN: EAR99
