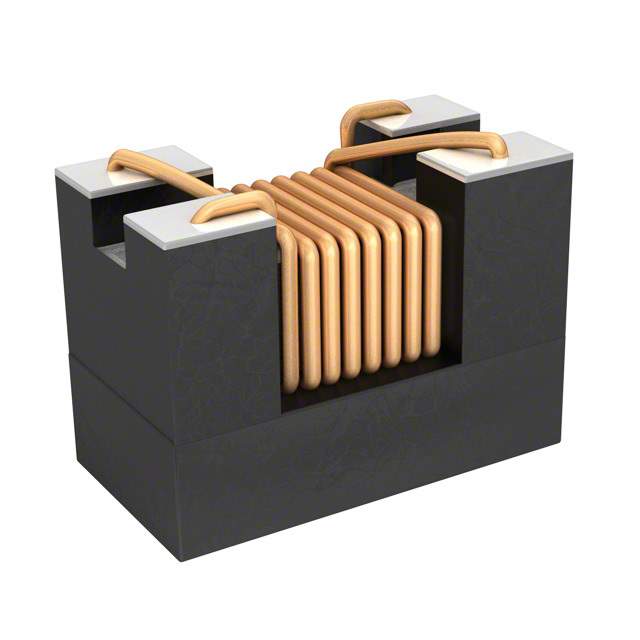

Part No 744235801
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description WE-CNSW SMD Common Mode Line Filter | CMC 1.3UH 1A 2LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 800 Ohms at 100MHz
Inductance at Frequency 1.3μH at 100kHz
Current Rating (Maximum) 1A
DC Resistance (DCR) (Maximum) 120mOhm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Maximum) 0.118" (3.00mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759021-744235801
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744235801 CAD Model

Description

The 759021-744235801 is an electronic component manufactured by Wurth Electronics Inc.

  • Product Type: Signal Line Filter
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Manufacturer Package: Horizontal, 4 PC pad
  • Maximum Height: 0.118 inches
  • Maximum Current Rating: 1A
  • DC Resistance (DCR): 120mOhm
  • Impedance: 800 Ohms @ 100MHz
  • Inductance: 1.3μH @ 100kHz
