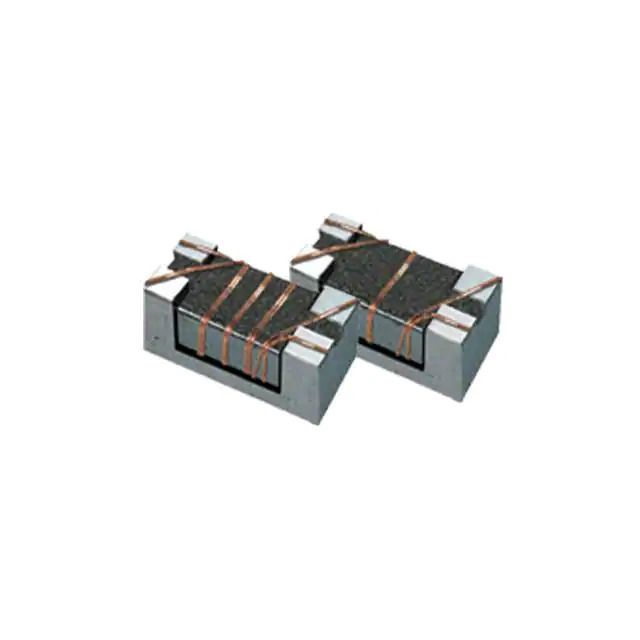

Same model may have multiple batches, images only for reference.

BWCU00321619161M02

Name: BWCU00321619161M02
Brand: Chilisin
SKU: 1369378
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BWCU00321619161M02
Manufacturer	Chilisin
Catalog	Common Mode Chokes
Description	CMC 340MA 2LN 160 OHM SMD
Datasheet	BWCU00321619161M02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Chilisin Electronics
Series	BWCU_02
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	160 Ohms @ 100 MHz
Current Rating (Max)	340mA
DC Resistance (DCR) (Max)	400mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Temperature Range - Operating	-40°C ~ 105°C
Ratings	-
Approval Agency	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max)	0.083" (2.10mm)
Package / Case	Horizontal, 4 PC Pad
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369378-BWCU00321619161M02
Ultra Librarian 3D Model	Ultra Librarian BWCU00321619161M02 CAD Model

Alternative Products

Description

The BWCU00321619161M02 is a common mode choke filter in the BWCU_02 series from Chilisin Electronics.

Series: BWCU_02
Package Size: Horizontal, 4 PC Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C to 105°C
Voltage Rating: 50V DC
Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height: 0.083" (2.10mm) Max
Current Rating: 340mA
DC Resistance (DCR): 400mOhm Maximum
Product Status: Active
Category: Filters - Common Mode Chokes
REACH: Unaffected
Application: Signal Line
