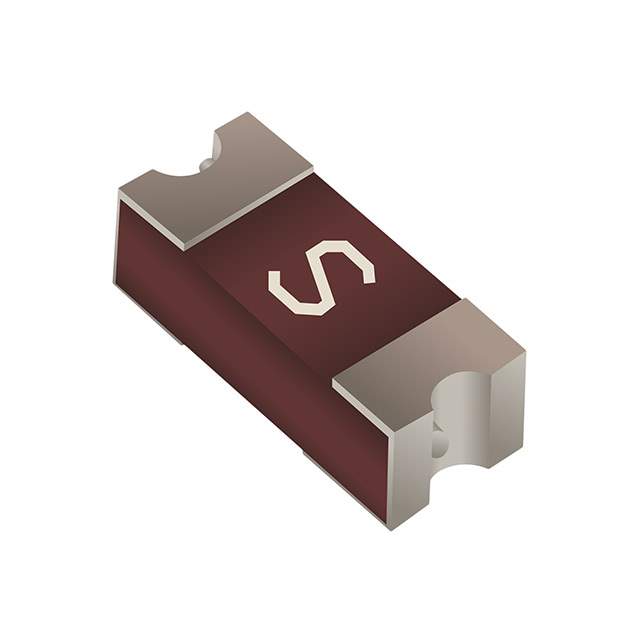

SF-2410FP100W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2410FP100W-2

Part No SF-2410FP100W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2410FP100W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2410FPxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2410 (6125 Metric)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Melting I2t 0.59
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm)
DC Cold Resistance 0.093 Ohms
Base Product Number SF-2410
Other Names SF-2410FP100W-2TR,SF-2410FP100W-2DKR,SF-2410FP100W-2CT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301995-SF-2410FP100W-2
Ultra Librarian 3D Model Ultra Librarian SF-2410FP100W-2 CAD Model

Description

The SinglFuse™ SF-2410FPxxxW series from Bourns Inc. is a board mount (cartridge style excluded) fuse type that comes in a package of tape & reel.

  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 100A AC and 50A DC
  • Voltage Rating: 250 V AC and 125 V DC
  • DC Cold Resistance: 0.093 Ohms
  • Melting I2t: 0.59
  • Standard Package: 2,000
  • Mounting Style: SMD (SMT)
  • Package / Case: 2410 (6125 Metric)
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • Current Rating: 1 A
  • REACH: REACH unaffected
  • HTSUS: 8536.10.0040
