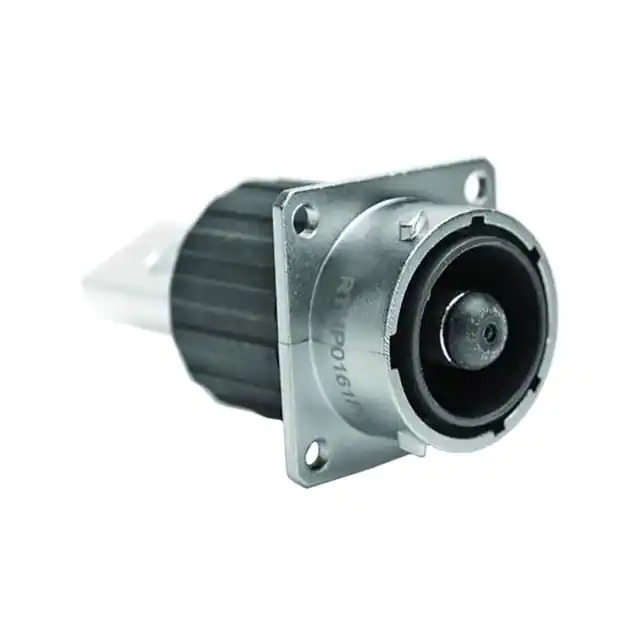

RTHP0161PN-H1 Amphenol Sine Systems Corp
Same model may have multiple batches, images only for reference.

RTHP0161PN-H1

Part No RTHP0161PN-H1
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 1P SOLDER EYELET
Datasheet
RTHP0161PN-H1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol Sine Systems Corp
Series ecomate® RM - High Amperage
Package Bulk
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 1
Shell Size - Insert 16-1
Shell Size, MIL -
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Eyelet(s)
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Zinc Die Cast
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Shielding Shielded
Current Rating (Amps) 180A
Voltage Rating 630VAC
Temperature Range - Operating -40°C ~ 125°C
Contact Finish Thickness - Mating -
Base Product Number RTHP01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366082-RTHP0161PN-H1
Ultra Librarian 3D Model Ultra Librarian RTHP0161PN-H1 CAD Model

Description

The Amphenol Sine Systems Corp RTHP0161PN-H1 is a circular connector assembly from the ecomate RM - High Amperage series.

  • Mounting: Panel Mount
  • Fastening Type: Bayonet Lock
  • Connector Type: Receptacle
  • Gender: Male Pins
  • Contact Finish: Silver
  • Current Rating: 180A
  • Voltage Rating: 630VAC
  • Shielded: Yes
  • IP Rating: IP67
  • Temperature Range: -40°C to 125°C
  • Shell Material: Zinc Die-Cast
  • Shell Finish: Nickel
