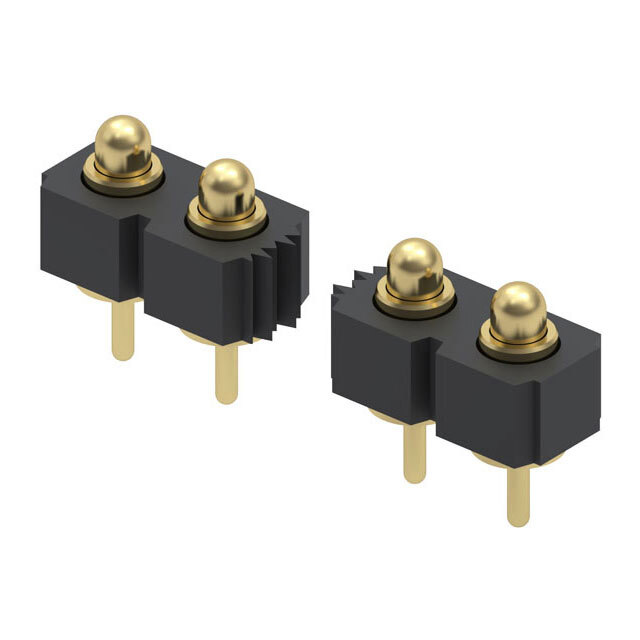

Same model may have multiple batches, images only for reference.
821-22-035-10-000101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

821-22-035-10-000101

Part No 821-22-035-10-000101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN SPRING 35POS SNGL .137 PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 821
Packaging Tube
Connector Type Piston
Number of Contacts 35
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Style Through Hole
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20μin (0.51μm)
Win Source Part Number 763364-821-22-035-10-000101
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 821
Introduction Date February 22, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 821-22-035-10-000101 CAD Model

Description

The Mill-Max Manufacturing Corp. 821 Series is a through-hole connector manufactured by Mill-Max Manufacturing Corp..

  • Pitch: 0.100 inches (2.54mm)
  • Connector Type: Piston
  • Contacts: 35
  • Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 20μin (0.51μm)
  • Family Name: 821
