Same model may have multiple batches, images only for reference.

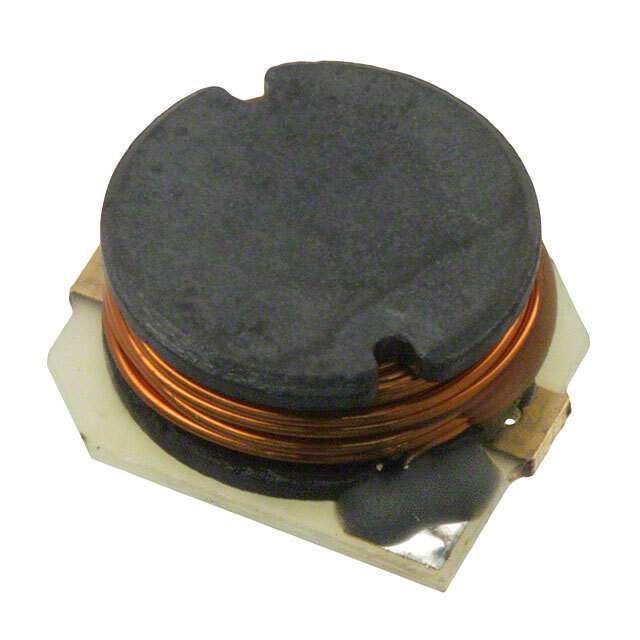

SDR1105-220ML Real Image
Same model may have multiple batches, images only for reference.

SDR1105-220ML

Part No SDR1105-220ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1105-220ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1105
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 6.5A
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SDR1105
Other Names SDR1105-220ML,SDR1105-220MLTR,-SDR1105-220MLDKR,SDR1105-220MLDKR,SDR1105-220MLCT,-SDR1105-220MLCT,-SDR1105-220MLTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274610-SDR1105-220ML
Ultra Librarian 3D Model Ultra Librarian SDR1105-220ML CAD Model

Description

The Bourns Inc. SDR1105-220ML is a drum core, wirewound inductor with an inductance of 22 µH and a tolerance of ±20%.

  • Series: SDR1105
  • Package: Tape & reel
  • Mounting: SMD (SMT)
  • AEC-Q200 Rated: Yes
  • Temperature Range: -40°C to 125°C
