Same model may have multiple batches, images only for reference.

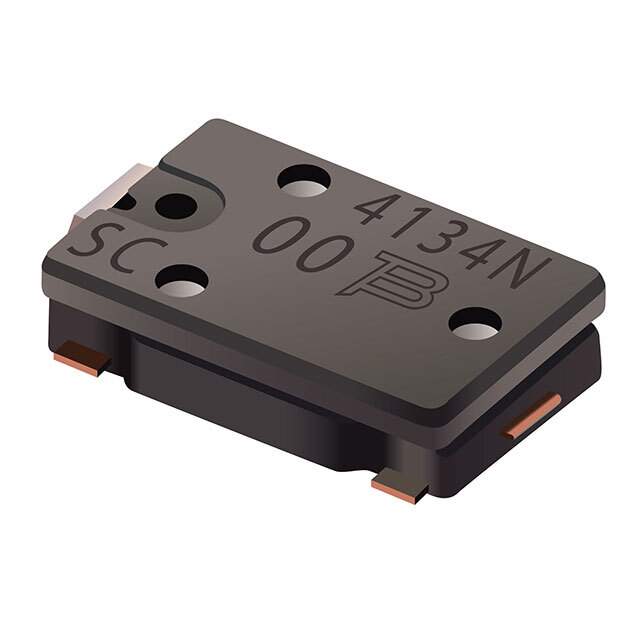

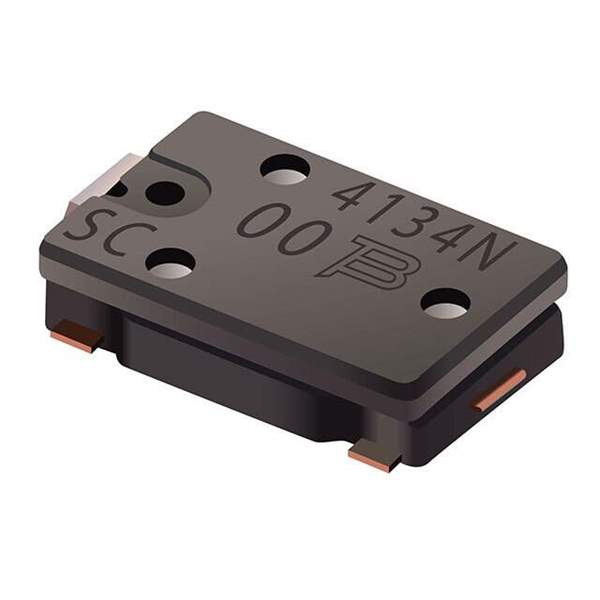

SC72AAB Real Image
Same model may have multiple batches, images only for reference.

SC72AAB

Part No SC72AAB
Manufacturer Bourns Inc.
Catalog Thermal Cutoffs, Cutouts (TCO)
Datasheet
SC72AAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Thermal Cutoffs (Thermal Fuses and Breakers)
Mfr Bourns Inc.
Series SC
Package Tape & Reel
Type Breaker
Holding Temperature 25°C (77°F)
Rated Functioning Temperature 72°C (162°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard SMD
Base Product Number SC72A
Other Names SC72AABCT,SC72AABDKR,SC72AABTR
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1301574-SC72AAB
Ultra Librarian 3D Model Ultra Librarian SC72AAB CAD Model

Description

The Bourns Inc. SC72AAB is a thermal cutoff (thermal fuse and breaker) that is designed to protect electronic circuits from over-temperature conditions.

  • Rated Functioning Temperature: 72°C (162°F)
  • Current Rating: 25A
  • Package: Nonstandard SMD
  • Standard Package: 5,000
  • Ideal for: Use in a variety of electronic devices that require protection from over-temperature conditions
