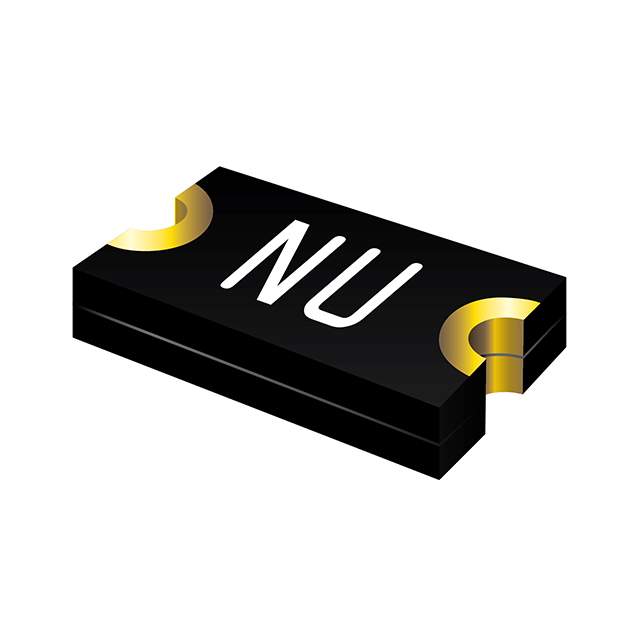

Same model may have multiple batches, images only for reference.

MF-NSML300-2

Name: MF-NSML300-2
Brand: Bourns Inc.
SKU: 1334899
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MF-NSML300-2
Manufacturer	Bourns Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 6V 3A 1206 / Polymeric PTC Resettable Fuse 6V 3 A Ih Surface Mount 1206 (3216 Metric), Concave
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Product Status	Obsolete
Type	Polymeric
Voltage - Max	6V
Current - Max	50 A
Current - Hold (Ih) (Max)	3 A
Current - Trip (It)	6 A
Time to Trip	4 s
Resistance - Initial (Ri) (Min)	2.5 mOhms
Resistance - Post Trip (R1) (Max)	20 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Surface Mount
Case / Package	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.063" W (3.25mm x 1.60mm)
Thickness (Max)	0.024" (0.60mm)
Approval Agency	cURus, TUV
Base Product Number	MF-NSML
RoHS Status	ROHS3 Compliant
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	MF-NSML300-2CT,MF-NSML300-2DKR,MF-NSML300-2-ND,MF-NSML300-2TR
Standard Package	5,000
Win Source Part Number	1334899-MF-NSML300-2
Ultra Librarian 3D Model	Ultra Librarian MF-NSML300-2 CAD Model

Alternative Products

Description

The Bourns Inc. MF-NSML300-2 is a polymeric PTC resettable fuse with a maximum voltage of 6V and a maximum current of 50 A.

Voltage - Max: 6V
Current - Max: 50 A
Current - Hold (Ih) (Max): 3 A
Current - Trip (It): 6 A
Time to Trip: 4 s
Resistance - Initial (Ri) (Min): 2.5 mOhms
Resistance - Post Trip (R1) (Max): 20 mOhms
Case / Package: 1206 (3216 Metric), Concave
Packaging: Reel
Units per Reel: 5000
Product Status: Obsolete
RoHS3 Compliant: Yes
REACH: Unaffected
