Same model may have multiple batches, images only for reference.

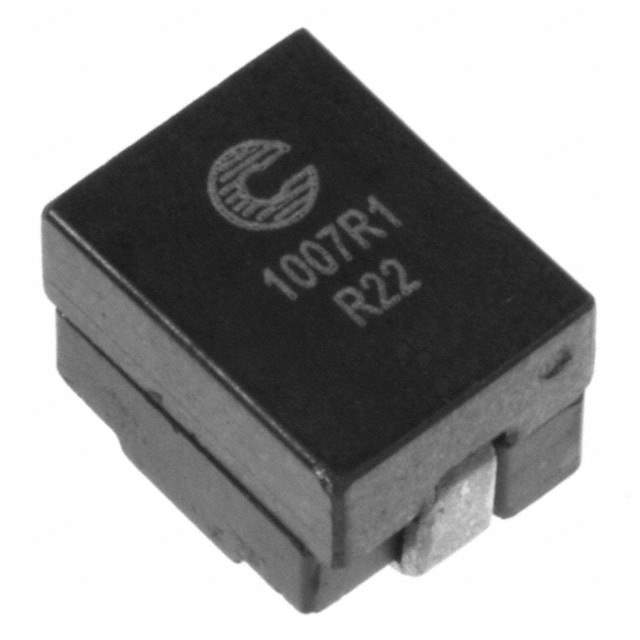

FP1007R1-R22-R Real Image
Same model may have multiple batches, images only for reference.

FP1007R1-R22-R

Part No FP1007R1-R22-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, High Frequency, Power Inductors | FIXED IND 215NH 60A 0.29 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 215nH
Tolerance ±10%
Current Rating (Amps) 60A
Current - Saturation 50A
Shielding Unshielded
DC Resistance (DCR) 0.29mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.402" L x 0.307" W (10.20mm x 7.80mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1175057-FP1007R1-R22-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FP1007R1-R22-R CAD Model

Description

The 1175057-FP1007R1-R22-R is a wirewound inductor manufactured by Eaton - Electronics Division.

  • Supply and demand status: balanced
