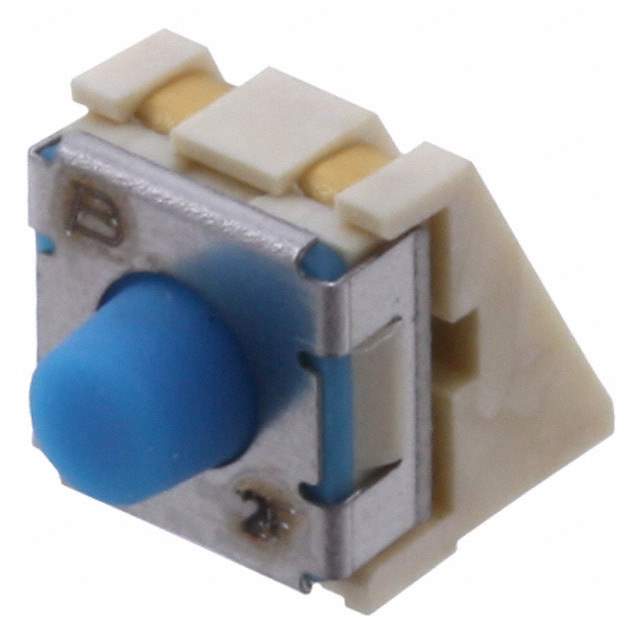

7914S-1-000E Real Image
Same model may have multiple batches, images only for reference.

7914S-1-000E

Part No 7914S-1-000E
Manufacturer Bourns Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.1A 16V
Datasheet
7914S-1-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.1A @ 16VAC/DC
Actuator Type Standard
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 5.44mm x 5.00mm
Illumination Non-Illuminated
Operating Force 300gf
Actuator Material Silicon Rubber
Mechanical Life 100,000 Cycles
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 007591-7914S-1-000E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7914S-1-000E CAD Model

Description

Product Overview

The 7914S-1-000E is engineered for superior performance in robust electronics, providing exceptional reliability and ease of use.

Applications

  • Aerospace systems
  • Military communication devices
  • High-frequency electronics

Features and Benefits

  • High resistance to environmental factors
  • Extended operating life
  • User-friendly design simplifies integration
