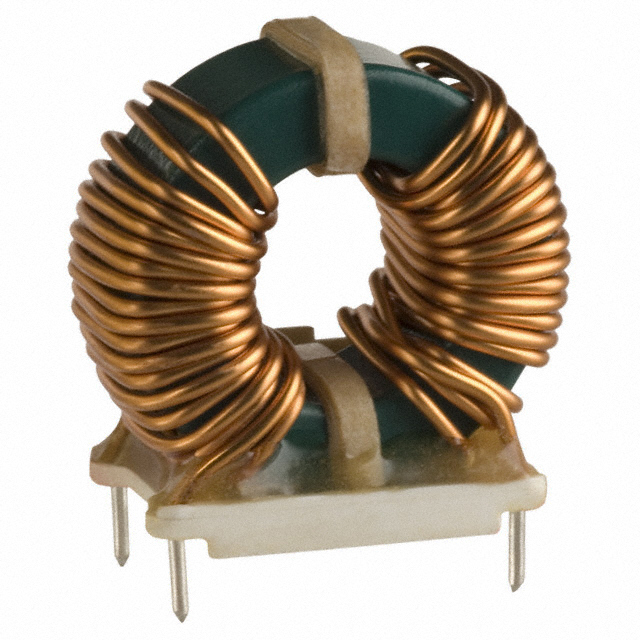

7116-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7116-RC

Part No 7116-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 6.8MH 2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 6.8 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 200mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.900" Dia x 0.650" W (22.86mm x 16.51mm)
Height (Max) 0.900" (22.86mm)
Case / Package Vertical, No Base, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530311-7116-RC
Ultra Librarian 3D Model Ultra Librarian 7116-RC CAD Model

Description

N
