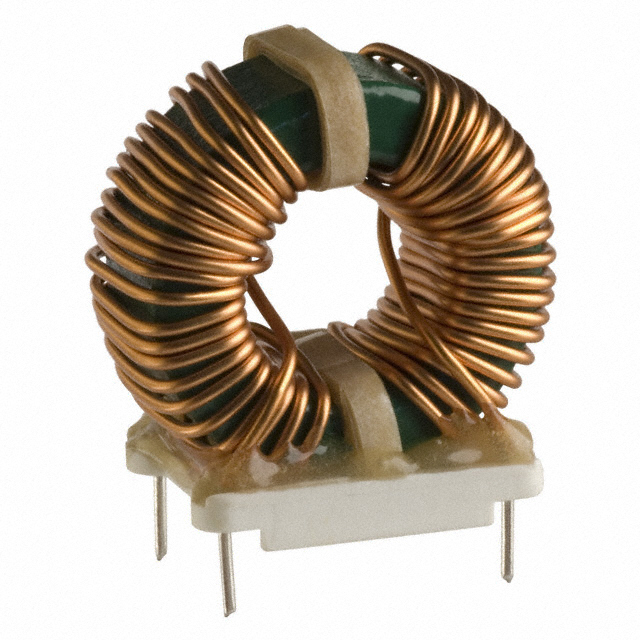

7109-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7109-RC

Part No 7109-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 2.55MH 2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 2.55 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 75mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.700" Dia x 0.550" W (17.78mm x 13.97mm)
Height (Max) 0.700" (17.78mm)
Case / Package Vertical, No Base, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530309-7109-RC
Ultra Librarian 3D Model Ultra Librarian 7109-RC CAD Model
