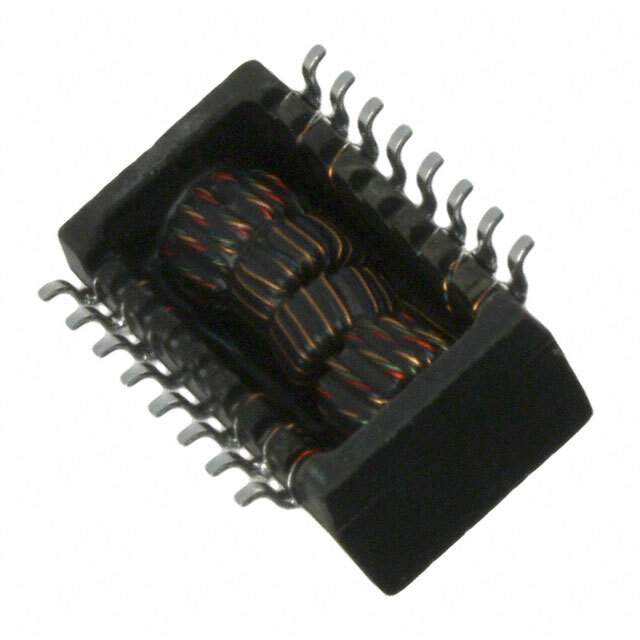

The S558-5999-U7 is a 10/100/1000 Base-T Ethernet connector with integrated magnetics manufactured by Bel Fuse Inc. This connector is designed to provide robust signal isolation and protection in Ethernet networking applications. The integrated magnetics include transformers and common mode chokes which improve signal integrity, reduce EMI emissions, and protect the PHY (physical layer) transceiver from voltage surges and transients.

Applications:

• Networking Equipment: Routers, switches, and network interface cards (NICs).
• Industrial Ethernet: Connecting industrial devices to Ethernet networks.
• Embedded Systems: Providing Ethernet connectivity for embedded devices.
• Telecommunications Equipment: Connecting telecom devices to Ethernet networks.

Features:

• 10/100/1000 Base-T Compatibility: Supports Ethernet data rates of 10 Mbps, 100 Mbps, and 1000 Mbps.
• Integrated Magnetics: Includes transformers and common mode chokes for signal isolation and noise reduction.
• High Isolation Voltage: Provides high voltage isolation between the Ethernet PHY and the network cable.
• Low Insertion Loss: Minimizes signal attenuation for reliable data transmission.
• Surface Mount Technology: Designed for surface mount assembly.

Benefits:

• Improved Signal Integrity: Integrated magnetics enhance signal integrity and reduce EMI emissions.
• Enhanced System Protection: High isolation voltage protects the Ethernet PHY from voltage surges and transients.
• Simplified Design: Integrated magnetics simplify circuit design and reduce component count.
• Reliable Data Transmission: Low insertion loss ensures reliable data transmission.

Additional Details:

The S558-5999-U7 is designed to meet industry standards for Ethernet connectivity. The datasheet provides detailed information on electrical characteristics, mechanical dimensions, and recommended PCB layout guidelines. Proper grounding and shielding are crucial for achieving optimal performance and minimizing EMI emissions. The operating temperature range must be adhered to for safe and reliable operation. Ensure that the connector is properly mounted to the PCB to ensure reliable connection and prevent damage.
