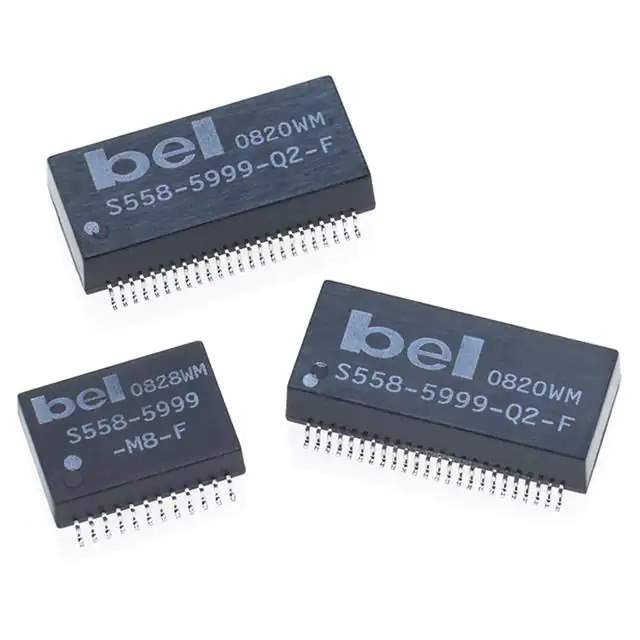

S558-5999-DL

Part No S558-5999-DL
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE TRANSFORMER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.095" L x 0.480" W (27.81mm x 12.19mm)
Height - Seated (Max) 0.285" (7.24mm)
Standard Package 240 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 932805-S558-5999-DL
Ultra Librarian 3D Model Ultra Librarian S558-5999-DL CAD Model

Description

The 932805-S558-5999-DL is a pulse transformer designed for use in transformers.

  • Manufacturer: Bel Fuse Inc.
  • Product Name: 932805-S558-5999-DL
  • Application: Transformers
  • Series: LAN 1000 Base-T
  • Inductance: 350μH
  • Mounting Type: Surface Mountable
  • Package: Tape & Reel
  • Height: 0.285" (7.24mm)
  • Standard Package: 240 pieces
  • Status: Obsolete
  • Weight: Unknown
  • ECCN: EAR99
  • REACH: Compliant, Unaffected
  • MSL Level: 2 (1-year shelf life)
  • HTSUS Code: 8504.31.2000
