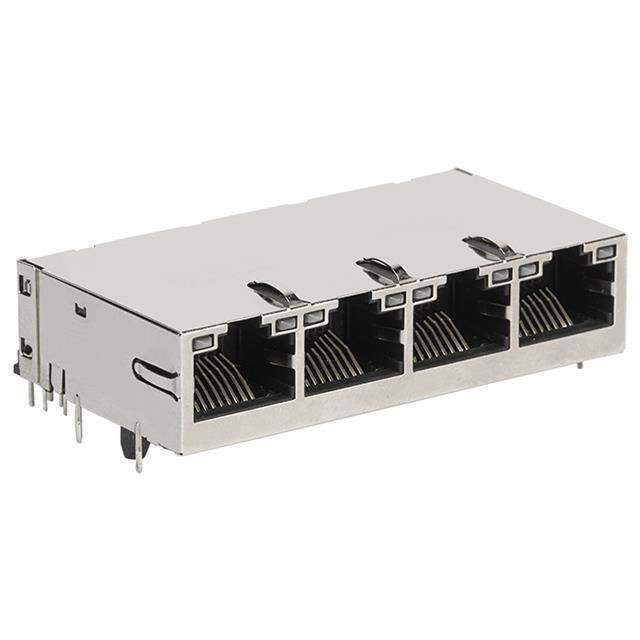

08B1-1X4T-06-F

Name: 08B1-1X4T-06-F
Brand: Bel Fuse Inc.
SKU: 1192110
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	08B1-1X4T-06-F
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 4PORT 100 BASE-T PCB / 4 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet	08B1-1X4T-06-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tray
Connector Type	RJ45
Number of Ports	4
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.531" (13.49mm)
LED Color	Does Not Contain LED
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	15.0µin (0.38µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	08B11X4T06-F
Standard Package	30
Win Source Part Number	1192110-08B1-1X4T-06-F
Ultra Librarian 3D Model	Ultra Librarian 08B1-1X4T-06-F CAD Model

Alternative Products

Description

The MagJack® 1192110-08B1-1X4T-06-F connector is a shielded RJ45 jack with magnetics designed for 10/100 Base-T and AutoMDIX applications.

Connector Type: Shielded RJ45 Jack with Magnetics
Application: 10/100 Base-T and AutoMDIX
Port Count: Four
Angle: 90° (Right)
Contact Material: Copper Alloy
Contact Finish: Gold
Contact Finish Thickness: 15.0µin (0.38µm)
Housing Material: Polybutylene Terephthalate (PBT)
Mounting Type: Through Hole
Packaging: Tray
Height Above Board: 0.531" (13.49mm)
Board Guide: Yes
Shielding: EMI Finger Shielding
Temperature Range: 0°C to 70°C
Alternative Part Numbers: 08B11X4T06-F or 08B11X4T06F
REACH Status: Not Affected
HTSUS: 8536.69.4040
