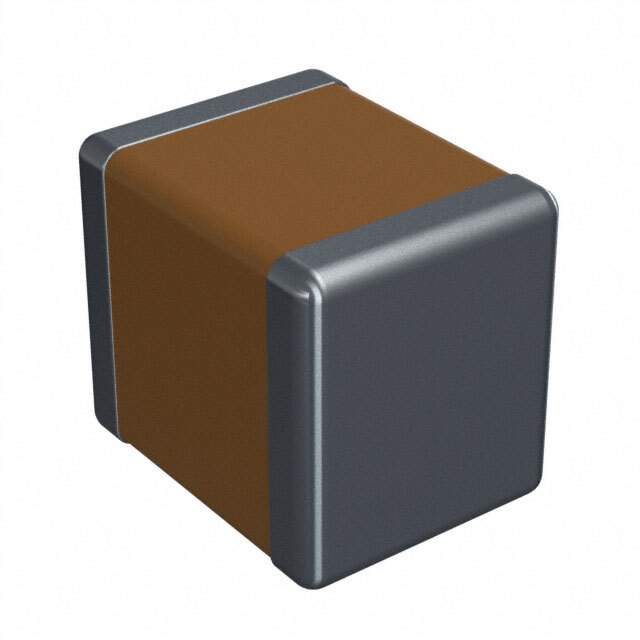

The AVX 1210YD106KAT2A is a ceramic capacitor manufactured by AVX Corporation. Ceramic capacitors are a type of capacitor that uses ceramic material as the dielectric. This particular capacitor is a surface-mount device (SMD) with a 1210 case size, a capacitance of 10µF (106 indicates 10 x 10^6 pF = 10µF), and a voltage rating of 16V (implied by the general purpose code YD). Ceramic capacitors are widely used in electronic circuits for bypassing, decoupling, filtering, and energy storage.

Applications

• Bypassing: Used to bypass noise and unwanted signals from power supply lines.
• Decoupling: Used to decouple different sections of a circuit to prevent interference.
• Filtering: Used in low-pass, high-pass, band-pass, and band-stop filters.
• Energy Storage: Used to store energy in power supplies and other applications.
• Timing Circuits: Used in RC timing circuits for oscillators and timers.

Features

• High Capacitance: Provides a relatively large capacitance value of 10µF in a small package.
• Surface-Mount Design: Designed for surface-mount assembly on PCBs.
• Ceramic Dielectric: Offers stable performance over temperature and frequency.
• Low ESR (Equivalent Series Resistance): Minimizes energy loss and improves circuit efficiency.

Benefits

• Effective Noise Suppression: Reduces noise and unwanted signals in electronic circuits.
• Stable Performance: Provides consistent capacitance value over temperature and frequency.
• Easy to Use: Surface-mount design allows for automated assembly.
• Versatile Application: Suitable for a wide range of electronic applications.

Additional Details

The AVX 1210YD106KAT2A is a multilayer ceramic capacitor (MLCC). The 1210 case size refers to its physical dimensions in inches (0.12 inch length and 0.10 inch width). It is crucial to adhere to reflow soldering profiles during assembly to prevent damage. The "KAT2A" suffix may refer to packaging details or specific electrical test requirements. Refer to the manufacturer's datasheet for detailed specifications, including temperature coefficient, insulation resistance, and ripple current rating. The dielectric type affects the capacitance stability over temperature.
