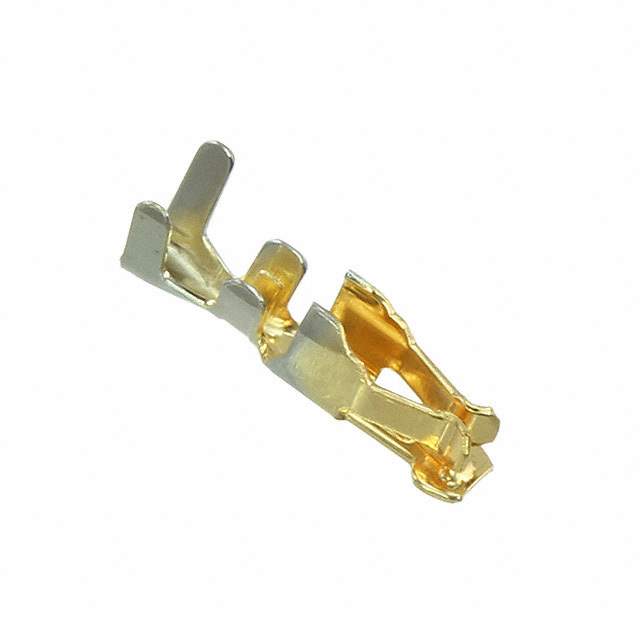

50394-8200 Real Image
Same model may have multiple batches, images only for reference.

50394-8200

Part No 50394-8200
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.76µm Select Gold Plating, Bag, Lead free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal
Contact Gender Female
Contact Material Brass, Bronze
Contact Plating Gold
Country of Origin SG
Depth 1.88 mm
Gender Female
Halogen Free Low Halogen
Height 2 mm
Housing Color Black
Housing Material Thermoplastic
Length 6.45 mm
Max Current Rating 2 A
Max Operating Temperature 125 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -55 °C
Mount Cable, Through Hole
Number of Contacts 20
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
Plating Nickel
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 125 V
Wire/Cable Gauge 30 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 30 AWG
Win Source Part Number 1215753-50394-8200
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 50394-8200 CAD Model

Description

The Molex 1215753-50394-8200 electronic component is a medium-popularity part that has a compliance to RoHS standards.

  • Product Type: Connector, PCB, signal
  • Pitch: 2.54 mm
  • Number of Contacts: 20
  • Gender: Female
  • Length: 6.45 mm
  • Shielded: Unshielded
  • Orientation: Straight
  • Contact Plating: Gold
  • Housing Color: Black
  • Plating: Nickel
  • Mounting: Cable, through-hole
