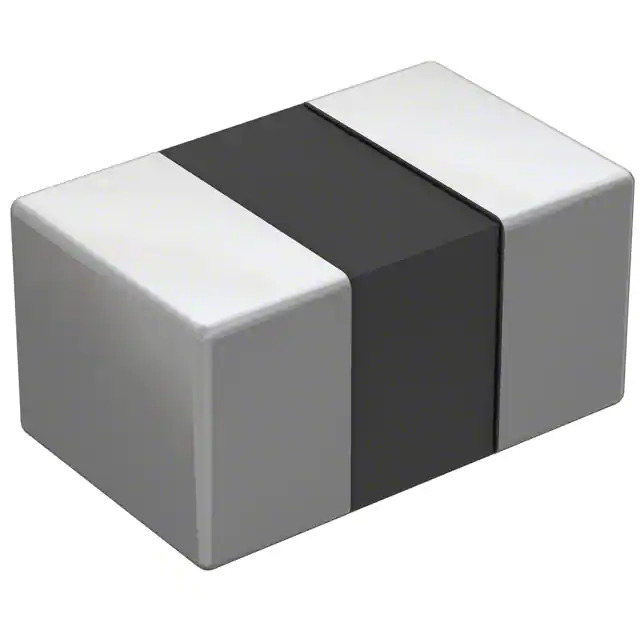

Same model may have multiple batches, images only for reference.
VCAS080514C300DP AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

VCAS080514C300DP

Part No VCAS080514C300DP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 18.5V 120A 0805 / 18.5 V 120 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
Datasheet
VCAS080514C300DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Product Status Active
Maximum AC Volts 10 V
Maximum DC Volts 14 V
Varistor Voltage (Min) 16.28 V
Varistor Voltage (Typ) 18.5 V
Varistor Voltage (Max) 20.72 V
Current - Surge 120 A
Energy 0.3J
Number of Circuits 1
Capacitance @ Frequency 900 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360881-VCAS080514C300DP
Ultra Librarian 3D Model Ultra Librarian VCAS080514C300DP CAD Model

Description

The KYOCERA AVX VCAS080514C300DP is a transient voltage suppressor (TVS) varistor from KYOCERA AVX.

  • Package: 0805 (2012 Metric)
  • Capacitance: 900 pF @ 1 kHz
  • Maximum AC Voltage: 10V
  • Maximum DC Voltage: 14V
  • Varistor Voltage: 16.28V to 20.72V
  • Surge Current: 120A
  • Energy Rating: 0.3J
  • Temperature Range: -55°C to 125°C
