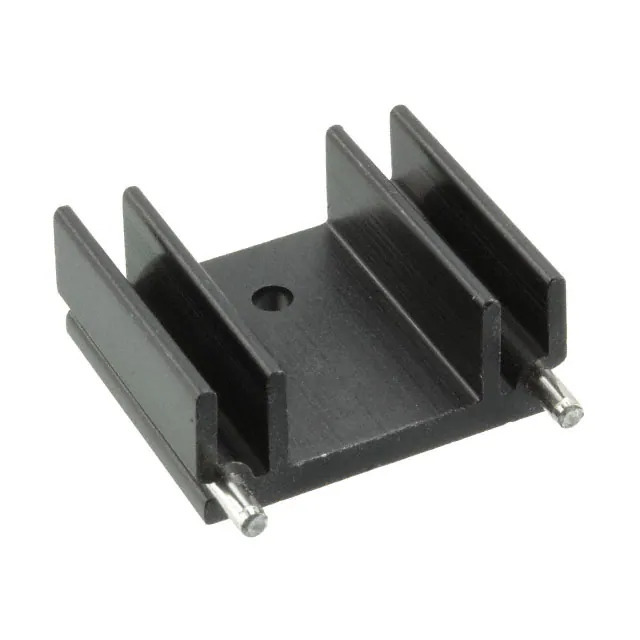

V6560W Assmann WSW Components
Same model may have multiple batches, images only for reference.

V6560W

Part No V6560W
Manufacturer Assmann WSW Components
Catalog Thermal - Heat Sinks
Description HEATSINK ALUM ANOD / Heat Sink TO-220 Aluminum Board Level
Datasheet
V6560W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Assmann WSW Components
Series -
Package Tray
Product Status Active
Type Board Level
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 0.984" (25.00mm)
Width 1.181" (30.00mm)
Diameter -
Fin Height 0.472" (12.00mm)
Power Dissipation @ Temperature Rise -
Thermal Resistance @ Forced Air Flow -
Thermal Resistance @ Natural 10.00°C/W
Material Aluminum
Material Finish Black Anodized
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1355174-V6560W
Ultra Librarian 3D Model Ultra Librarian V6560W CAD Model

Description

The Assmann WSW Components V6560W is a thermal heat sink designed for board level applications from Assmann WSW Components.

  • Shape: Rectangular with Fins
  • Length: 0.984" (25.00mm)
  • Width: 1.181" (30.00mm)
  • Fin Height: 0.472" (12.00mm)
  • Material: Aluminum
  • Finish: Black Anodized
  • Compatible Package: TO-220
  • Attachment Method: Bolt-On, PC Pin
  • Thermal Resistance: 10.00°C/W @ Natural Airflow
