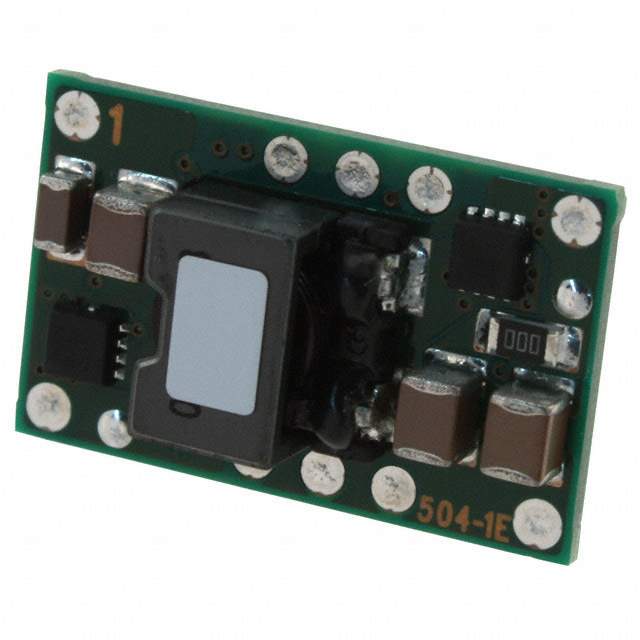

PTH12060LAST Real Image
Same model may have multiple batches, images only for reference.

PTH12060LAST

Part No PTH12060LAST
Manufacturer Artesyn Embedded Technologies
Catalog HOT - SALES and EOL Components
Description DC DC CONVERTER 0.8-1.8V 55W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Packaging Tape and Reel
Status Obsolete
Type Non-Isolated PoL Module
Voltage - Input (Minimum) 10.8V
Voltage - Input (Maximum) 13.2V
Voltage - Output 1 0.8 ~ 1.8V
Current - Output (Maximum) 10A
Power (W) 55W
Applications ITE (Commercial)
Features Remote On/Off, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Style SMD
Manufacturer Package 10-SMD Module
Parts Dimension 1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 283886-PTH12060LAST
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTH12060LAST CAD Model

Description

The Artesyn Embedded Technologies 283886-PTH12060LAST is a non-isolated PoL module that is used for ITE (Commercial) applications.

  • Voltage Output Range: 0.8 ~ 1.8V
  • Efficiency: 88%
  • Maximum Current Output: 10A
  • Mounting Technology: SMD
  • Features: Remote on/off, SCP, and UVLO
  • Manufacturer Package: 10-SMD Module
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 250
  • MSL Level: 1 (Unlimited)
  • Power: 55W
  • Voltage Input Range: 10.8V to 13.2V
  • Dimension: 1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
