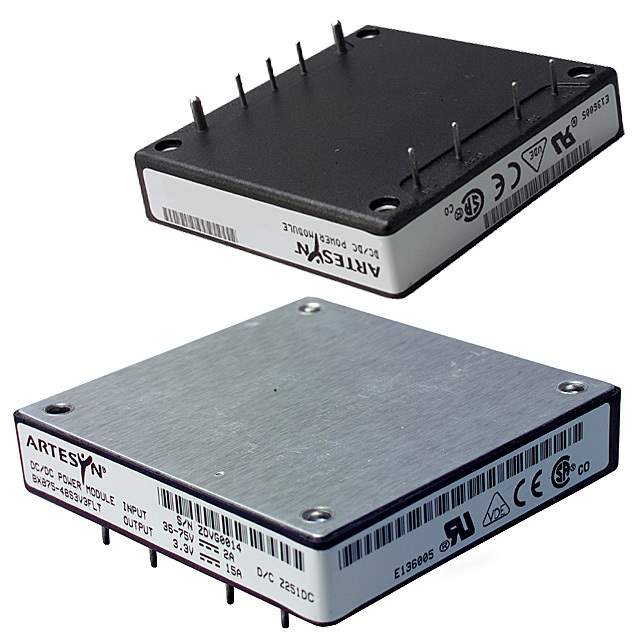

BXB75-48S05FHT Real Image
Same model may have multiple batches, images only for reference.

BXB75-48S05FHT

Part No BXB75-48S05FHT
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 36V - 75V Input
Datasheet
BXB75-48S05FHT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Artesyn Embedded Power
Series BXB75 (75W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 15A
Power (Watts) 75 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 9-DIP Module
Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 100
Win Source Part Number 1017540-BXB75-48S05FHT
Ultra Librarian 3D Model Ultra Librarian BXB75-48S05FHT CAD Model

Description

The BXB75 (75W) isolated module DC-DC converter is a high-performance power supply that provides a single output of 5V with a current output of 15A.

  • Output Voltage: 5V
  • Output Current: 15A
  • Features: Remote On/Off, OTP, OVP, SCP, UVLO
  • Efficiency: 83%
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Package: 9-DIP module
  • Temperature Range: -40°C to 100°C
  • Dimensions: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Mounting: Through Hole
  • Manufacturer: Artesyn Embedded Power
  • Status: Obsolete
