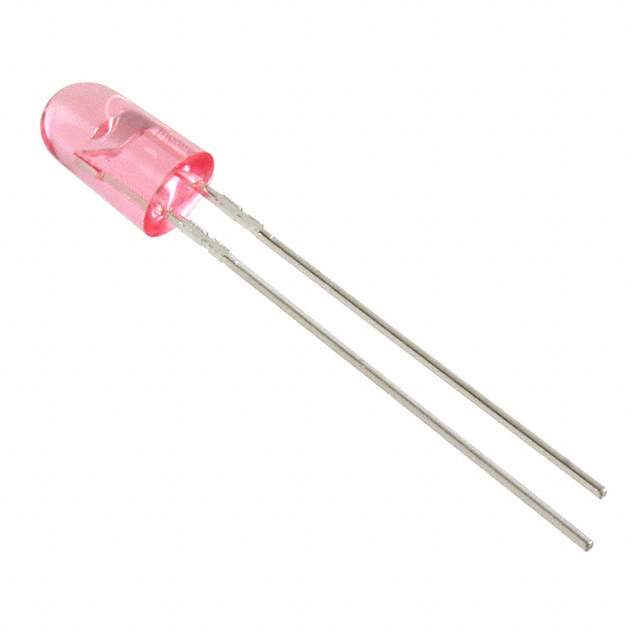

HLMP-BD06-P00DD Real Image
Same model may have multiple batches, images only for reference.

HLMP-BD06-P00DD

Part No HLMP-BD06-P00DD
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR T/H / Red 630nm LED Indication - Discrete 2V Radial
Datasheet
HLMP-BD06-P00DD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Cut Tape (CT),Tape & Box (TB)
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Clear
Millicandela Rating 880mcd
Lens Style Oval with Domed Top
Lens Size 5.00mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 70°, 35°
Mounting Type Through Hole
Wavelength - Dominant 630nm
Wavelength - Peak 639nm
Package / Case Radial
Height (Max) 8.91mm
Base Product Number HLMP-BD06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names HLMP-BD06-P00DD-ND,516-3943-1,516-3943-3
Standard Package 2,000
Win Source Part Number 984167-HLMP-BD06-P00DD
Ultra Librarian 3D Model Ultra Librarian HLMP-BD06-P00DD CAD Model

Description

The HLMP-BD06-P00DD is a red LED indication discrete component from Broadcom Limited.

  • Viewing Angle: 70° and 35°
  • Millicandela Rating: 880mcd
  • Forward Voltage: 2V
  • Current Rating: 20mA
  • Wavelength: 630nm
  • Peak Wavelength: 639nm
  • Mounting Type: through-hole
  • Package: radial
  • Lens Style: oval with a domed top
  • Lens Size: 5.00mm
