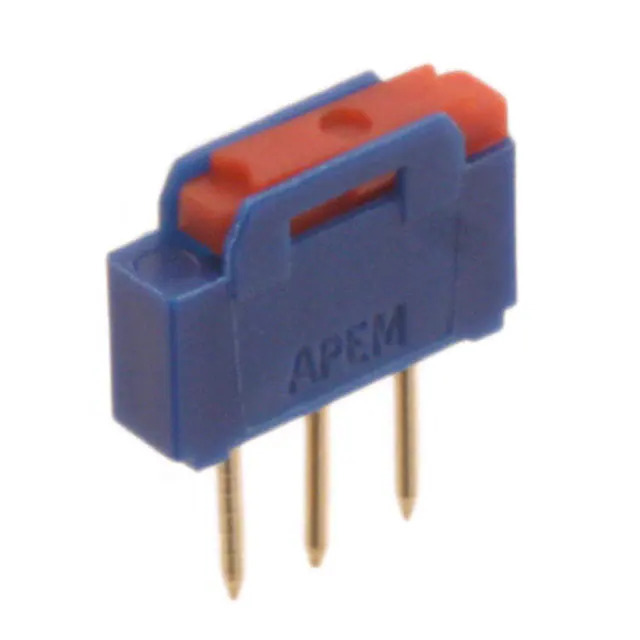

NK236 Apem Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr APEM Inc.
Series NK
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 12 V
Actuator Type Flush
Actuator Length -
Contact Material Nickel
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Sealed - Flux Protection
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA66), Nylon 6/6, Glass Filled
Switch Travel 1.60mm
Mechanical Life -
Electrical Life 2,000 Cycles
Operating Force -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376333-NK236
Ultra Librarian 3D Model Ultra Librarian NK236 CAD Model

Description

The NK236 is a SPDT slide switch from APEM Inc.'s NK series.

  • Mounting Type: Through-hole
  • Termination: PC Pin
  • Temperature Range: -40°C to 85°C
  • Current Rating (DC): 500mA
  • Voltage Rating (DC): 12V
  • Design: Sealed with flux protection
  • Electrical Life: 2,000 cycles
  • Actuator Type: Compact and Flush
