Products specifications Report Issue?

Category Switches>Slide Switches
Manufacturer C&K
Packaging Reel - TR
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Electrical Life 5,000 Cycles
Base Product Number JS102011
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number 401-1999-6,*JS102011SAQN,401-1999-2,401-1999-1
Standard Package 1,000
Win Source Part Number 1323781-JS102011SAQN
Ultra Librarian 3D Model Ultra Librarian JS102011SAQN CAD Model

Description

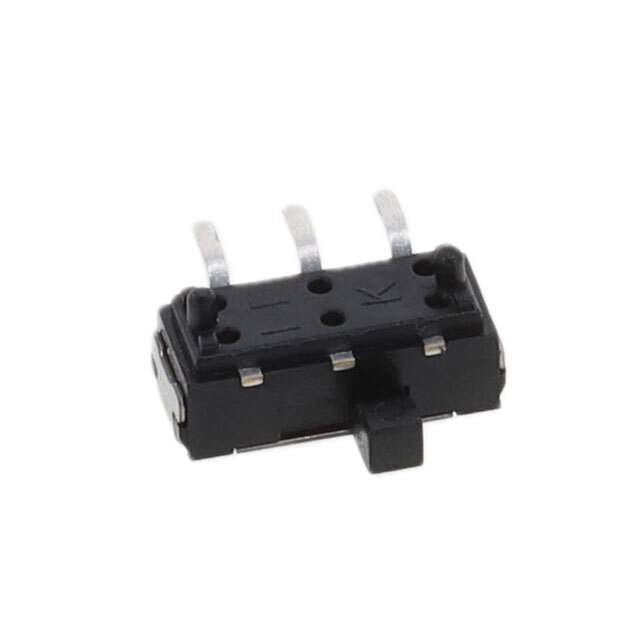

JS102011SAQN from C&K Components is a slide switch used where designers need simple, direct mechanical user input for mode selection, power routing, or function switching. In embedded systems, industrial controls, consumer electronics, test equipment, and interface panels, this type of component is valued for straightforward operation, tactile selection, and easy integration into compact control layouts. For engineers, it fits applications that prioritize manual switching reliability and intuitive human-machine interaction over software-only control. As a C&K slide switch, it may be considered for both new designs and maintenance sourcing, but the current lifecycle status for this exact part is information not available, so design teams should confirm manufacturer availability before committing to production. RoHS compliance information for JS102011SAQN is also information not available from the provided data. Engineers and buyers should verify environmental compliance, material declarations, and any regional regulatory requirements directly through the official datasheet, manufacturer statements, or authorized distribution channels.
