Same model may have multiple batches, images only for reference.

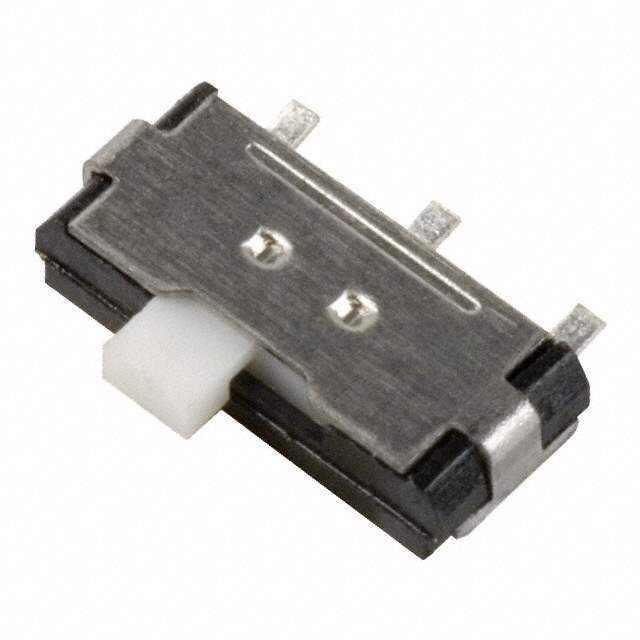

AYZ0102AGRLC Real Image
Same model may have multiple batches, images only for reference.

AYZ0102AGRLC

Part No AYZ0102AGRLC
Manufacturer C&K Components
Catalog Slide Switches
Description Miniature Slide Switches | SWITCH SLIDE SPDT 100MA 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Reel
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12V
Actuator Type Standard
Actuator Length 1.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Style SMT, Right Angle
Termination Style Gull Wing
Temperature Range - Operating -10°C ~ 60°C
Actuator Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mechanical Life 10,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759124-AYZ0102AGRLC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AYZ0102AGRLC CAD Model

Description

The AYZ0102AGRLC from C&K is an SPDT circuit switch with on-on switch function.

  • Voltage Rating: 12V DC
  • Mounting: right angle SMT
  • Contact Finish: silver
  • Contact Material: copper alloy
  • Actuator Material: polyamide (PA46), nylon 4/6, glass filled
  • Actuator Type: standard
  • Actuator Length: 1.00mm
  • Operating Temperature Range: -10°C to 60°C
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Current Rating: 100mA (DC)
