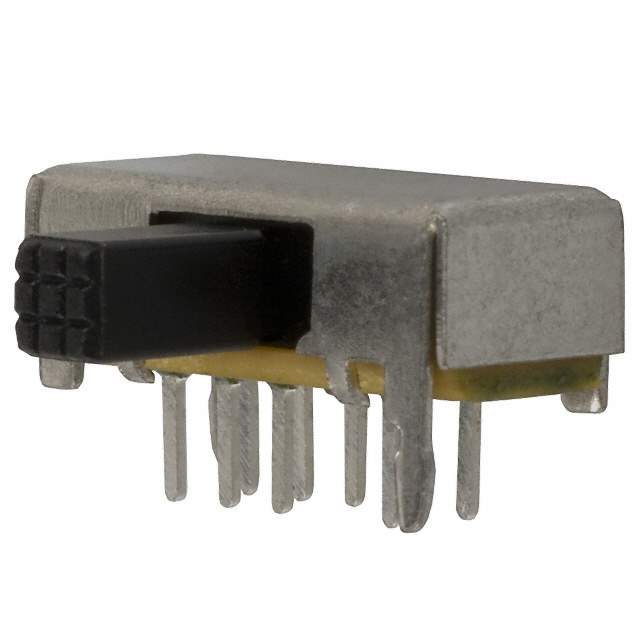

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 6.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 200/300gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names EG1945,P040211
Standard Package 400
Win Source Part Number 1035883-EG2308A
Ultra Librarian 3D Model Ultra Librarian EG2308A CAD Model

Description

The E-Switch EG2308A is a DP3T slide switch from E-Switch, belonging to the EG series of switches.

  • Win Source Part Number: 1035883-EG2308A
  • Termination Style: PC Pin
  • Voltage Rating: 12V
  • Current Rating: 100mA (DC)
  • Operating Temperature: -20°C to 70°C
  • Standard Package Quantity: 400
  • Mounting Type: Through Hole, Right Angle
