Same model may have multiple batches, images only for reference.

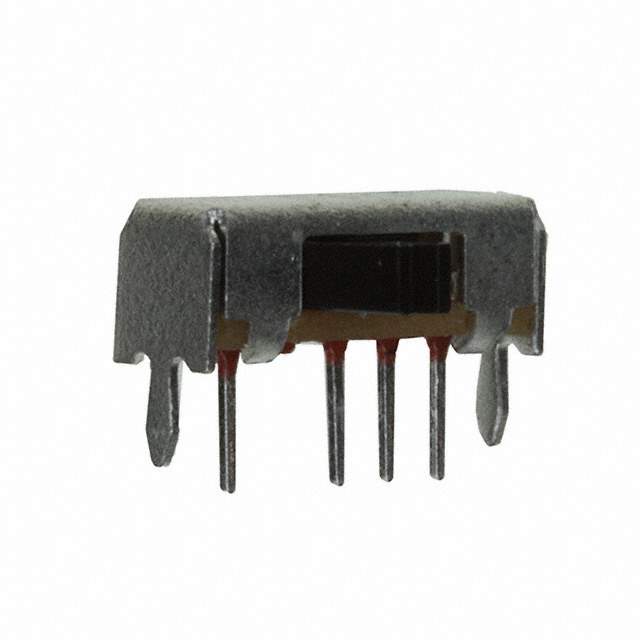

OS103011MA7QP1 Real Image
Same model may have multiple batches, images only for reference.

OS103011MA7QP1

Part No OS103011MA7QP1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SP3T 100MA 12V / Slide Switch SP3T Through Hole, Right Angle
Datasheet
OS103011MA7QP1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Manufacturer C&K
Packaging Bulk
Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number OS103011
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number 0S103011MA7QP1,*OS103011MA7QP1,*0S103011MA7QP1,CKN9561,2266-OS103011MA7QP1
Standard Package 150
Win Source Part Number 1323796-OS103011MA7QP1
Ultra Librarian 3D Model Ultra Librarian OS103011MA7QP1 CAD Model

Description

The C&K 1323796-OS103011MA7QP1 slide switch is a high-quality component designed for use in a variety of electronic applications.

  • Circuit: SP3T
  • Switch Function: On-On-On
  • Termination Style: PC Pin
  • Mounting: Through Hole, Right Angle
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Actuator Length: 4.00mm
  • Switch Travel: 2.00mm
  • Electrical Life: 10,000 cycles
  • Operating Temperature: -30°C to 70°C
  • Voltage Rating: 12V DC
  • Current Rating: 100mA (DC)
  • Mechanical Life: 10,000 cycles
