Same model may have multiple batches, images only for reference.

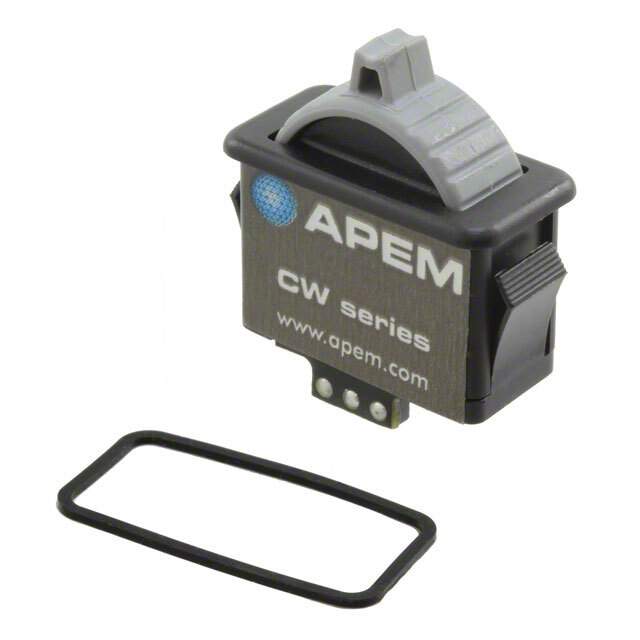

CW-B1GY1A00A0 Real Image
Same model may have multiple batches, images only for reference.

CW-B1GY1A00A0

Part No CW-B1GY1A00A0
Manufacturer Apem Inc.
Catalog Navigation Switches, Joystick
Description SWITCH THUMBWHEEL HALL EFFECT / Thumbwheel, 1 - Axis Analog (Hall Effect) Output
Datasheet
CW-B1GY1A00A0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Navigation Switches, Joystick
Mfr APEM Inc.
Series CW
Package Bulk
Type Thumbwheel, 1 - Axis
Actuator Type Thumbwheel
Switch Function 2-Way Directional
Output Analog (Hall Effect)
Voltage - Supply 5VDC
Mounting Type Panel Mount, Snap-In
Termination Style Connector
Temperature Range - Operating -40°C ~ 85°C
Panel Cutout Dimensions Rectangular - 22.73mm x 10.67mm
Features Gray Actuator
Mechanical Life 3,000,000 Cycles
Base Product Number CW-B1GY
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
California Prop 65 Warning Information
Win Source Part Number 1349996-CW-B1GY1A00A0
Ultra Librarian 3D Model Ultra Librarian CW-B1GY1A00A0 CAD Model

Description

The CW series joystick navigation switch is a thumbwheel type of switch manufactured by APEM Inc..

  • Switch Function: 2-Way Directional
  • Output Type: Analog (Hall Effect)
  • Mounting Type: Panel Mount, Snap-In
  • Panel Cutout Dimensions: Rectangular - 22.73mm x 10.67mm
  • Actuator Type: Thumbwheel
  • Actuator Color: Gray
  • Mechanical Life: 3,000,000 Cycles
  • Voltage - Supply: 5VDC
  • Operating Temperature: -40°C ~ 85°C
  • For Use With/Related Products: AMPSS
  • ECCN: EAR99
