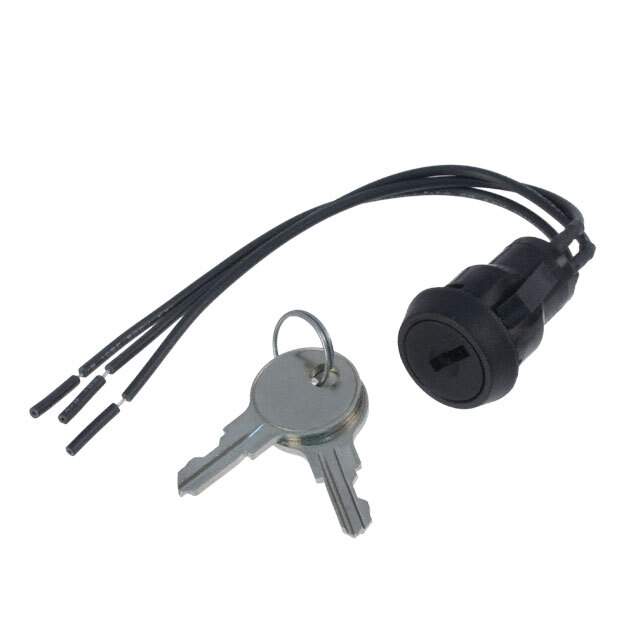

P101132CMWCG2 Real Image
Same model may have multiple batches, images only for reference.

P101132CMWCG2

Part No P101132CMWCG2
Manufacturer C&K Components
Catalog Keylock Switches
Description SWITCH KEYLOCK 2POS SPDT 4A 125V  /  Keylock Switch 2 Position SPDT 4A (AC) 125 VAC DC Panel Mount, Snap-In
Datasheet
P101132CMWCG2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Keylock Switches
Mfr C&K
Series P
Package Bulk
Circuit SPDT
Number of Positions 2
Switch Function On-On
Contact Timing Not Specified
Current Rating (Amps) 4A (AC)
Voltage Rating - AC 125 V
Actuator Type Flat Key
Key Removable Positions 1 only
Angle of Throw 90°
Contact Material Copper
Contact Finish Gold
Mounting Type Panel Mount, Snap-In
Termination Style Wire Leads
Panel Cutout Dimensions Circular - 20.30mm Dia
Depth Behind Flange 27.23mm
Electrical Life 10,000 Cycles
Base Product Number P101132C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9020
Other Names Q2248159,426-28-001,CKN10050,*P101132CMWCG2,P10113-2CMWCG2,P10113-2CMWCG2-ND
Standard Package 18
Win Source Part Number 1083456-P101132CMWCG2
Ultra Librarian 3D Model Ultra Librarian P101132CMWCG2 CAD Model

Description

The P101132CMWCG2 is a keylock switch from the P series of C&K.

  • Positions: 2
  • Circuit Type: SPDT
  • Termination Style: Wire leads
  • Panel Cutout Dimension: Circular - 20.30mm Dia
  • Contact Finish: Gold
  • Contact Material: Copper
  • Voltage Rating: 125V AC
  • Current Rating: 4A (AC)
  • ECCN: EAR99
  • REACH Status: REACH Affected
