Same model may have multiple batches, images only for reference.

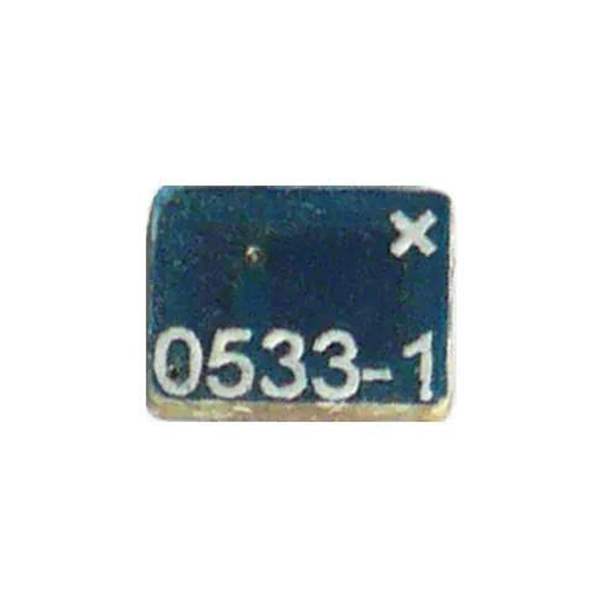

A10192 Real Image
Same model may have multiple batches, images only for reference.

A10192

Part No A10192
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 2.4GHZ PCB TRACE SLDR SMD / 2.4GHz Bluetooth, WiMax?, WLAN, Zigbee? PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 0.8dBi Solder Surface Mount
Datasheet
A10192 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series Fusca
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type PCB Trace
Number of Bands 1
VSWR 2.1
Return Loss -10dB
Gain 0.8dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications Bluetooth, WiMax™, WLAN, Zigbee™
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 846343-A10192
Ultra Librarian 3D Model Ultra Librarian A10192 CAD Model

Description

The 846343-A10192 is a RF antenna from the Fusca series, designed for Bluetooth, WiMax™, WLAN, and Zigbee™ applications.

  • Series: Fusca
  • Frequency: 2.4GHz ~ 2.5GHz
  • Return Loss: -10dB
  • VSWR: 2.1
  • Height - Max: 0.043 inches (1.10mm)
  • Mounting Type: Surface Mount
  • Antenna Type: PCB Trace
  • Gain: 0.8dBi
  • Number of Bands: 1
  • Frequency Group: UHF
  • Manufacturer: Antenova
  • Product Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8529.10.9100
