The LTC6994IS6-2#TRMPBF is a versatile timer from Analog Devices Inc., designed to provide a range of timing functions for various applications. This monolithic, programmable delay block is part of the TimerBlox® series, which is known for its simplicity, flexibility, and precision. The LTC6994IS6-2#TRMPBF is specifically tailored to manage timing tasks such as pulse delay, pulse generation, pulse width modulation, and frequency division.

Key Features

• Programmable Delay or Pulse Width: The LTC6994IS6-2#TRMPBF offers a programmable delay range from 1μs to 33.6 seconds, allowing users to fine-tune the timing to meet their specific requirements.
• CMOS Output Driver: This product features a robust CMOS output driver that can source or sink up to 20mA, which is suitable for driving a wide range of load types.
• Low Supply Voltage: It operates on a supply voltage ranging from 2.25V to 5.5V, making it compatible with various power supply levels and ideal for battery-powered applications.
• High Accuracy: With a timing accuracy of ±1%, the LTC6994IS6-2#TRMPBF ensures precise control over timing functions, which is crucial for critical applications.
• Temperature Stability: The device maintains its performance across a wide temperature range, from -40°C to 125°C, providing reliable operation under varying environmental conditions.

Applications

The LTC6994IS6-2#TRMPBF is suitable for a myriad of applications across different sectors. It is an ideal choice for use in:

• Industrial control systems
• Automotive electronics
• Communication systems
• Consumer electronics
• Precision timing applications

Package and Quality

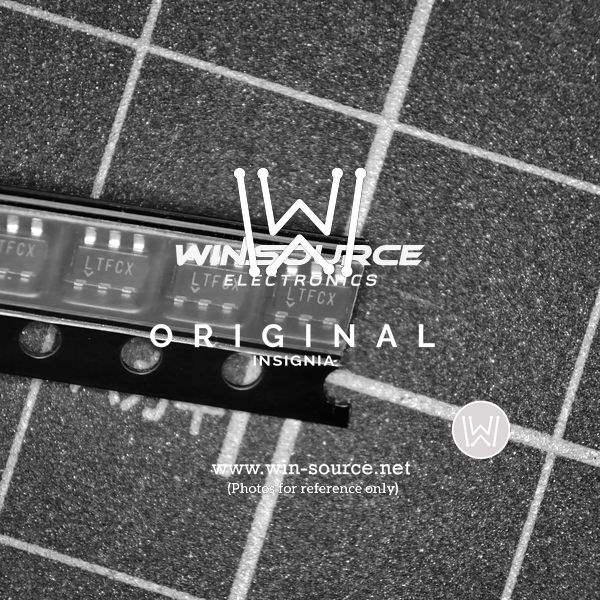

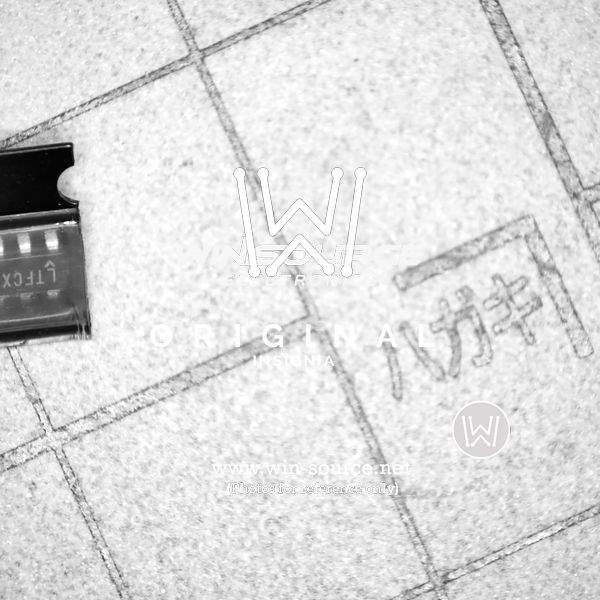

Encased in a compact SOT-23 package, the LTC6994IS6-2#TRMPBF is designed to occupy minimal board space while delivering its robust functionality. The product is available in tape and reel packaging, facilitating efficient assembly for high-volume production. Analog Devices Inc. ensures that this timer meets stringent quality and reliability standards, making it a dependable component for your timing solutions.
