Analog Devices Inc. LTC4417CUF#PBF PowerPath Controller

The LTC4417CUF#PBF from Analog Devices Inc. is a sophisticated PowerPath controller designed to manage power among three sources, ensuring a smooth transition and uninterrupted supply to the load. This component is ideal for systems that require a reliable power management solution, capable of selecting between multiple power sources such as wall adapters, USB ports, or battery power.

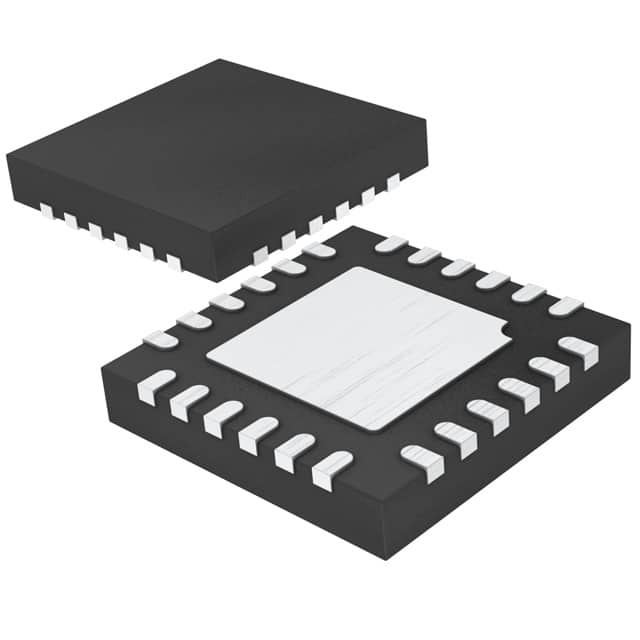

Encased in a compact 20-lead QFN package, the LTC4417CUF#PBF features low RDS(ON) internal switches that connect the highest priority valid power source to the output while blocking reverse and cross-conduction. The device operates over a wide voltage range from 2.5V to 36V, making it versatile for various applications, from portable devices to automotive and industrial systems.

The LTC4417CUF#PBF simplifies power system design by eliminating the need for external diodes and associated heat sinks, thereby reducing both the bill of materials cost and the board space requirement. This component also provides an array of protection features, including overvoltage, undervoltage, and overcurrent protection, enhancing the overall system reliability.

With its fast switching capability, the LTC4417CUF#PBF ensures minimal interruption during power source transitions, which is critical for sensitive electronic devices. Each input is individually monitored for undervoltage and overvoltage conditions, and a STATUS pin is available to provide real-time feedback regarding which input is currently selected.

In summary, the LTC4417CUF#PBF stands out as a high-performance, reliable solution for managing multiple power sources in a variety of demanding applications. Its ease of use, combined with robust protection features, makes it an excellent choice for engineers looking to enhance their power system designs with a trusted product from Analog Devices Inc.
