Analog Devices Inc. LTC2754IUKG-12: High-Precision DAC

The LTC2754IUKG-12 is a cutting-edge digital-to-analog converter (DAC) product from Analog Devices Inc., renowned for its precision and performance in demanding applications. This 12-bit DAC is part of a family of quad 16-/14-/12-bit SoftSpan DACs with integrated precision reference, designed for industrial, automotive, and communication systems where high accuracy is critical.

Key Features

• Resolution: The LTC2754IUKG-12 offers a 12-bit resolution, providing fine granularity and precise control over analog output signals.
• SoftSpan Output Ranges: The DAC features multiple programmable output ranges, including unipolar and bipolar modes, which can be configured without any external components. This flexibility allows for easy integration into a wide range of systems.
• Integrated Precision Reference: With an onboard precision voltage reference, the LTC2754IUKG-12 ensures stable and accurate output, even in the face of supply voltage variations and temperature fluctuations.
• Interface Options: The product supports a parallel interface for fast data input, making it suitable for high-speed applications that require quick response times.
• Temperature Range: It operates over an industrial temperature range, ensuring reliable performance in extreme conditions.
• Power-On Reset: The DAC includes a power-on reset circuit that ensures the DAC output powers up to zero scale or midscale and remains there until a valid write takes place.

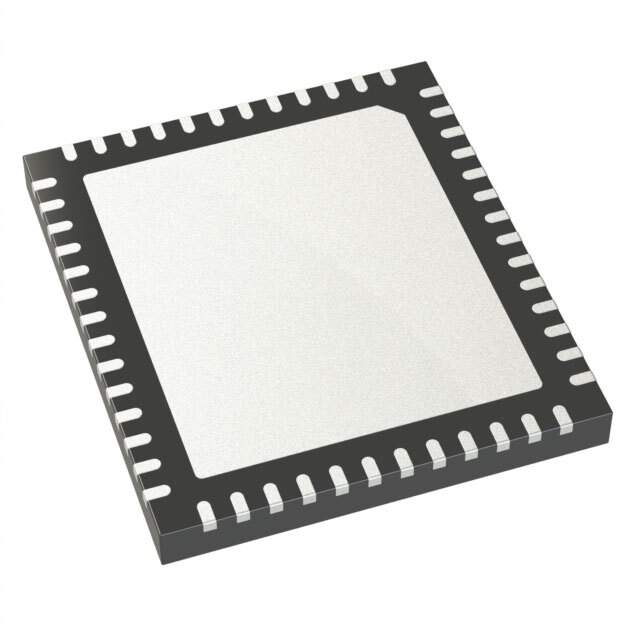

• Package: The LTC2754IUKG-12 comes in a compact 48-lead 7mm × 7mm QFN package, ideal for space-constrained applications.

Applications

The LTC2754IUKG-12 is suited for a broad range of applications where precision is paramount. It is commonly used in:

• Automated Test Equipment (ATE)
• Process Control and Industrial Automation
• Data Acquisition Systems
• Automotive Systems
• Medical Instrumentation
• Telecommunications Infrastructure

With its robust design and versatile features, the LTC2754IUKG-12 from Analog Devices Inc. offers engineers a reliable and high-performance solution for their DAC needs. Whether in the lab or in the field, this product ensures accurate and consistent analog signal generation for a multitude of critical applications.
