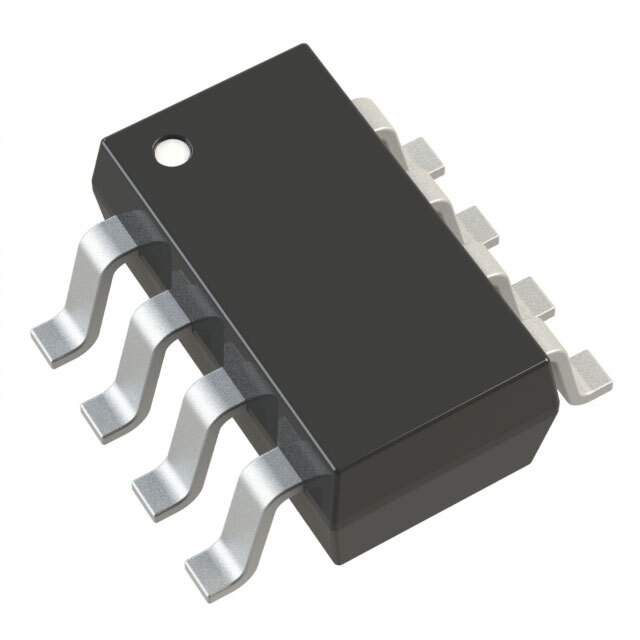

AD5640BRJZ-2REEL7

Part No AD5640BRJZ-2REEL7
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - ADCs/DACs - Special Purpose
Description IC DAC 14BIT V-OUT SOT23-8 / 14 Bit Digital to Analog Converter 1 SOT-23-8
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Data Acquisition - Digital to Analog Converters (DAC)
Mfr Analog Devices Inc.
Series nanoDAC®
Package Tape & Reel (TR)
Product Status Obsolete
Number of Bits 14
Number of D/A Converters 1
Settling Time 10µs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type Internal
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
INL/DNL (LSB) ±4 (Max), ±0.5 (Max)
Architecture String DAC
Temperature Range - Operating -40°C ~ 105°C
Package / Case SOT-23-8
Supplier Device Package SOT-23-8
Mounting SMD (SMT)
Base Product Number AD5640
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names AD5640BRJZ-2REEL7-ND,AD5640BRJZ-2REEL7TR,AD5640BRJZ-2REEL7DKR,AD5640BRJZ-2REEL7CT
Standard Package 3,000
Win Source Part Number 1208855-AD5640BRJZ-2REEL7
Ultra Librarian 3D Model Ultra Librarian AD5640BRJZ-2REEL7 CAD Model

Description

Product Overview: AD5640BRJZ-2REEL7

The AD5640BRJZ-2REEL7 is a high-precision digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This component is part of their nanoDAC® series, which is known for its compact size, low power consumption, and high accuracy, making it an ideal choice for a wide range of applications including process control, data acquisition systems, and digital gain and offset adjustment.

Key Features:

  • Precision: The AD5640BRJZ-2REEL7 offers 14-bit resolution, ensuring fine granularity and precise control over analog outputs. This level of precision is suitable for applications requiring exacting standards.
  • Package: Enclosed in an SOT-23 package, this DAC is designed for space-constrained applications. The compact form factor allows for integration into designs where board space is at a premium.
  • Power Efficiency: With a low power operation, the device is optimized for power-sensitive applications. This efficiency can be crucial in portable and battery-operated devices.
  • Output Range: The output range is programmable to either two times the reference voltage or two times the reference voltage with an offset. This flexibility allows designers to tailor the output to match the requirements of the subsequent stage.
  • Interface: A 3-wire serial interface ensures simple connection to microcontrollers or digital systems, making system integration straightforward.
  • Stability: The on-chip output buffer provides a stable drive capability, which is particularly beneficial when driving capacitive loads.

Applications:

  • Portable battery-powered instruments
  • Digital gain and offset adjustment
  • Process control systems
  • Data acquisition systems
  • Automotive systems

The AD5640BRJZ-2REEL7 is offered in a tape and reel format (REEL7), which facilitates automated manufacturing processes, making it a convenient choice for mass production. With its combination of precision, low power, and compact packaging, the AD5640BRJZ-2REEL7 from Analog Devices Inc. is an exceptional DAC solution for designers looking to optimize their analog output performance in a variety of demanding applications.
