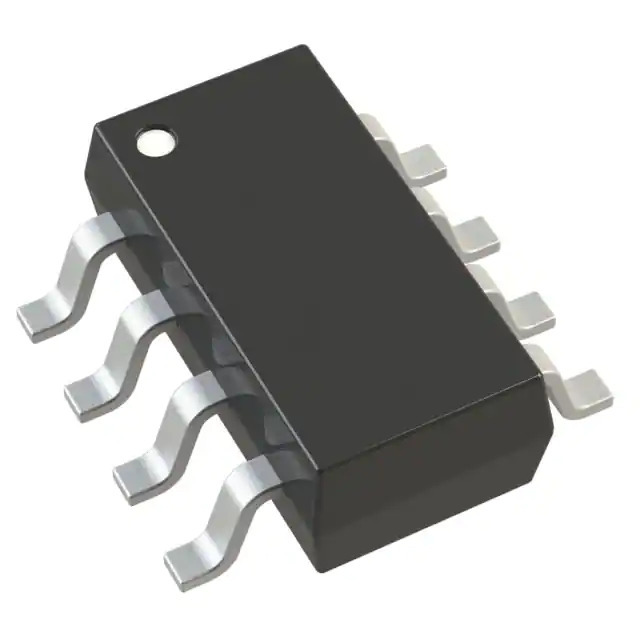

Analog Devices Inc. LTC2640ACTS8-LM12#TRMPBF Digital-to-Analog Converter

The LTC2640ACTS8-LM12#TRMPBF is a high-precision, 12-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed to provide reliable and accurate analog output from digital input signals. This integrated circuit (IC) is part of the LTC2640 family of DACs that offer a variety of resolution options and output ranges to cater to a wide range of applications.

Encased in a compact TSOT-23 package, the LTC2640ACTS8-LM12#TRMPBF is optimized for space-constrained applications while delivering high performance. With its 12-bit resolution, the device ensures fine-grain control over the analog output, making it suitable for precision control systems where accuracy is paramount. The DAC operates with a single 2.7V to 5.5V supply, providing flexibility in various power environments.

This particular model features a full-scale output that swings from 0V to a reference voltage, which can be set up to the supply voltage, providing a wide dynamic range for the analog output. The LTC2640ACTS8-LM12#TRMPBF also boasts a low-power shutdown mode, which significantly reduces power consumption when the DAC is not in active use, making it an excellent choice for battery-powered or energy-sensitive applications.

The device offers a SPI/MICROWIRE-compatible 3-wire serial interface, which simplifies the connection to microcontrollers or digital systems and ensures easy integration into existing designs. This interface is designed to support high-speed data transfers, allowing for quick updates to the DAC output as needed.

Key features of the LTC2640ACTS8-LM12#TRMPBF include its rail-to-rail output, power-on reset to zero-scale or mid-scale, and its ability to maintain excellent linearity with a low differential nonlinearity (DNL) specification. These characteristics make it a strong candidate for high-resolution analog output tasks in fields such as industrial automation, process control, data acquisition systems, and portable instrumentation.

With its combination of high resolution, compact form factor, and ease of use, the LTC2640ACTS8-LM12#TRMPBF from Analog Devices Inc. stands out as a robust and versatile DAC solution for designers looking to bridge the digital and analog domains effectively.
