AD9135BCPZ - High Performance, Dual, 16-Bit DAC

The AD9135BCPZ is a state-of-the-art, dual-channel, 16-bit digital-to-analog converter (DAC) designed by Analog Devices Inc. This high-performance component is tailored for applications requiring high data throughput and exceptional signal quality. The AD9135BCPZ is ideal for advanced communication systems, instrumentation, and automated test equipment, offering a compelling solution for system designers.

Featuring an impressive sample rate of up to 2.8 GSPS (giga-samples per second), the AD9135BCPZ enables the generation of high-frequency signals with wide bandwidths. This makes it particularly suitable for high-speed signal generation in wireless communication systems such as base stations for 3G, 4G, and emerging 5G technologies, as well as in sophisticated radar and electronic warfare systems.

The DAC integrates a number of advanced features to optimize performance and ease of use. It includes a dual-port, source-synchronous LVDS (Low-Voltage Differential Signaling) interface that simplifies the connection to FPGAs and ASICs, ensuring rapid data transfer and reduced system complexity. Additionally, the AD9135BCPZ offers an on-chip PLL (Phase-Locked Loop) to reduce the need for complex external clocking circuitry, thereby minimizing design footprint and cost.

With its excellent dynamic performance, the AD9135BCPZ delivers pristine signal quality, characterized by low noise and intermodulation distortion. The device also features an 8-lane JESD204B interface, supporting high-speed serialized data transmission and further reducing the number of required data input/output lines.

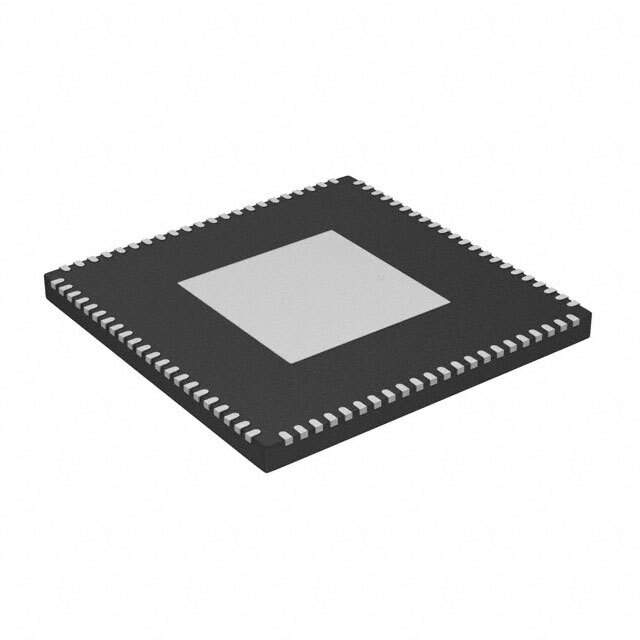

The AD9135BCPZ comes in a compact 88-lead LFCSP (Lead Frame Chip Scale Package) that is RoHS compliant and specified to operate over the industrial temperature range of -40°C to +85°C. This robust packaging ensures reliable performance even in harsh environmental conditions, making it a versatile choice for a wide array of demanding applications.

In summary, the AD9135BCPZ from Analog Devices Inc. represents a cutting-edge solution for high-speed DAC requirements, combining high data rates, exceptional signal quality, and a suite of features to streamline system design and enhance overall performance.
