Analog Devices Inc. LTC1564IG#PBF Lowpass Filter

The LTC1564IG#PBF from Analog Devices Inc. is a highly integrated and feature-rich lowpass filter that is designed for easy implementation into a variety of applications. This component offers a significant reduction in board space requirements and is an ideal choice for systems that need precise signal conditioning without the complexity of designing discrete filter circuits.

Key Features

• Frequency Range: The LTC1564IG#PBF provides a continuous frequency range from 1Hz to 150kHz, which can be adjusted without the need for external components, allowing for flexible design options.
• Programmable Attenuation: With programmable attenuation capabilities, the device can be configured for a 0dB to 40dB attenuation range in 1024 (1dB) steps, enabling precise control over signal levels.
• Low Distortion: The device offers exceptionally low distortion performance, making it suitable for high-fidelity audio applications and signal processing where maintaining signal integrity is critical.
• Single Supply Operation: Operating from a single 5V supply, the LTC1564IG#PBF simplifies power supply design and is well-suited for portable or space-constrained applications.
• No Clock Feedthrough: This filter is designed to eliminate clock feedthrough, ensuring clean and stable filter characteristics across the entire operating range.

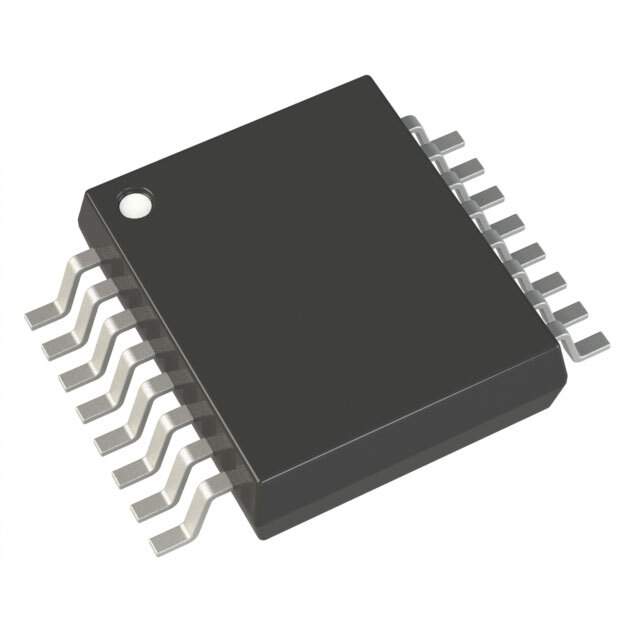

• Surface-Mount Package: The component comes in a compact 20-lead SSOP package, which is conducive to modern, high-density circuit board designs.

Applications

With its versatile features, the LTC1564IG#PBF is ideal for a wide range of applications, including:

• Anti-aliasing for ADCs
• DAC output smoothing
• Audio processing equipment
• Signal conditioning in communication systems
• Medical instrumentation
• Test and measurement systems

The LTC1564IG#PBF stands out for its ease of use, with no external resistors or capacitors required for setting the filter's frequency response. This, combined with its high performance and flexibility, makes it a go-to component for engineers looking to implement high-quality filtering without the hassle of complex design processes.
