Same model may have multiple batches, images only for reference.

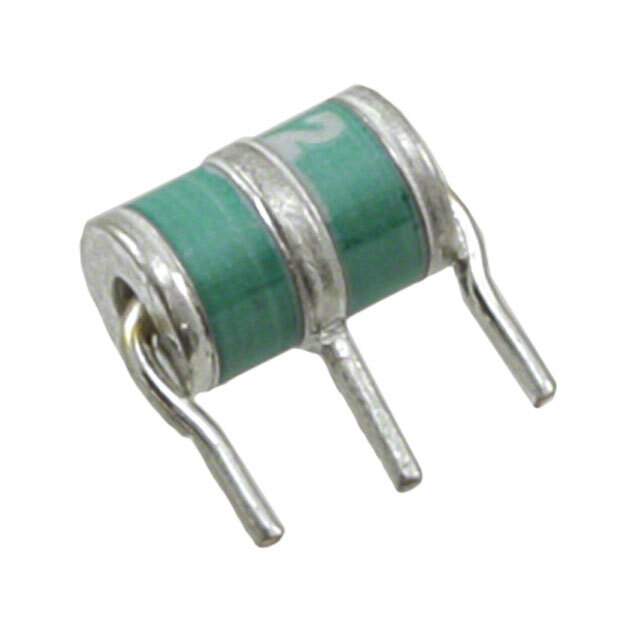

2036-09-B2LF Real Image
Same model may have multiple batches, images only for reference.

2036-09-B2LF

Part No 2036-09-B2LF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 20% 10KA THROUGH HOLE
Datasheet
2036-09-B2LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Series Mini-TRIGARD 2036
Packaging Tray
Voltage - DC Spark Over (Nom) 90V
Impulse Discharge Current (8/20μs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Style Through Hole
Package Axial Cylinder, 3 Lead (Radial Bend)
Win Source Part Number 761705-2036-09-B2LF
Family Name 2036
Introduction Date February 18, 2009
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Safety, Industrial, Communications & Networking, Automotive, Defence, Military & Aerospace, Consumer Electronics, Commercial
Ultra Librarian 3D Model Ultra Librarian 2036-09-B2LF CAD Model

Description

The Bourns Inc. 761705-2036-09-B2LF is a Mini-TRIGARD 2036 series three-pole axial cylinder package with a radial bend.

  • Mounting Style: Through-hole
  • Applications: Circuit protection
  • Tolerance: ±20%
  • DC Spark Over Voltage: 90V
  • Impulse Discharge Current: 10000A (10kA)
  • Halogen-Free: Compliant
  • Popularity: Medium
  • Packaging: Tray
  • Supply and Demand: Limited
  • Introduction Date: February 18, 2009
  • Estimated EOL Date: 2024
  • Applications: Safety, industrial, communications & networking, automotive, defence, military & aerospace, consumer electronics, and commercial applications.
