Product Overview: HMC620LC4 from Analog Devices Inc.

The HMC620LC4, crafted by the renowned Analog Devices Inc., stands as a testament to the company's commitment to excellence in the realm of RF and microwave technology. This high-performance, passive double-balanced mixer is designed to operate within the 6 - 26 GHz frequency range, making it an ideal component for a variety of applications including point-to-point radios, VSAT, military & space, and test instrumentation.

Engineered with precision, the HMC620LC4 boasts an exceptional conversion loss of 9 dB, delivering a remarkable balance between performance and power efficiency. Its wide IF bandwidth extends from DC to 3.5 GHz, providing ample flexibility for diverse system designs. The device's impressive LO/RF isolation of 25 dB ensures minimal leakage between the local oscillator and the radio frequency signal, thus enhancing the overall signal integrity and system performance.

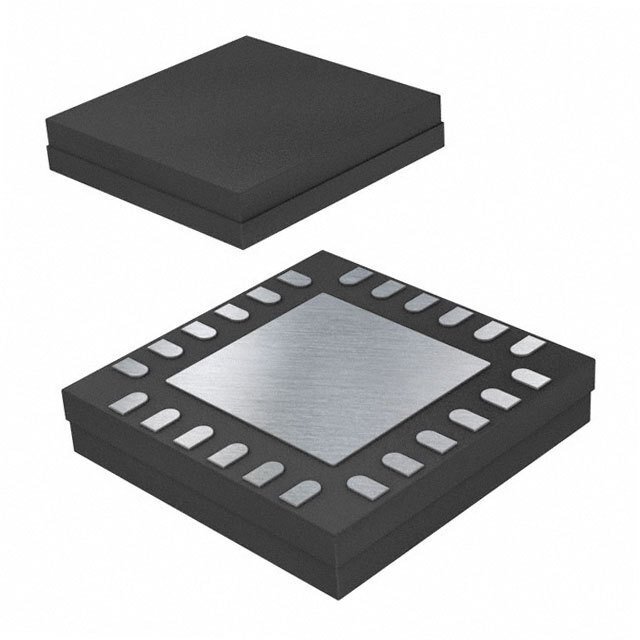

The HMC620LC4 comes in a compact 4x4 mm ceramic leadless chip carrier package, which not only saves valuable board space but also offers robustness for various environmental conditions. This packaging, coupled with the mixer's ability to operate over a temperature range of -40°C to +85°C, makes it suitable for deployment in systems where reliability and durability are paramount.

Analog Devices Inc. has equipped the HMC620LC4 with an input IP3 of 20 dBm, which translates to excellent linearity and allows the mixer to maintain its performance even in the presence of strong interfering signals. This characteristic is especially critical in complex RF environments where maintaining signal clarity is of utmost importance.

In summary, the HMC620LC4 from Analog Devices Inc. embodies a blend of high performance, versatility, and reliability. Its comprehensive range of features makes it an excellent choice for designers seeking to enhance their RF and microwave systems with a mixer that promises both quality and longevity.
